PURE POWER 10
500W
PURE POWER 10
500WExceptionally Quiet, Superior Reliability, Great Value
Pure Power 10 500W offers peerless dependability and best-in-class features with 80PLUS® Silver efficiency (up to 91%), a silence-optimized 120mm be quiet! fan and high-quality sleeved cables. It supports multiple GPUs with two PCIe connectors and offers stable operation thanks to use of DC-to-DC power conversion technology.
Whether you’re assembling a very quiet system, building a multi-GPU gaming system, or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular prize.
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
POWER AND COMPATIBILITY FOR YOUR SYSTEM
The best combination of features and performance at a very popular pricePure Power 10 offers 500W of continuous power with two independent 12Vrails for signal stability and two PCI express connectors for multi-GPU systems. It is suited to very quiet systems, for upgrading or building multimedia or multi-GPU gaming systems.
80PLUS® SILVER CERTIFICATION
Very high operating efficiencyPure Power 10 500W is certified 80PLUS® Silver with an efficiency rating of up to 91% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.
INNOVATIVE TECHNOLOGIES
DC-to-DC, Active Clamp and Synchronous RectifierThe use of Active Clamp and Synchronous Rectifier technologies provides very stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This ensures secure operation for next generation processors and graphics cards.
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fanThe silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

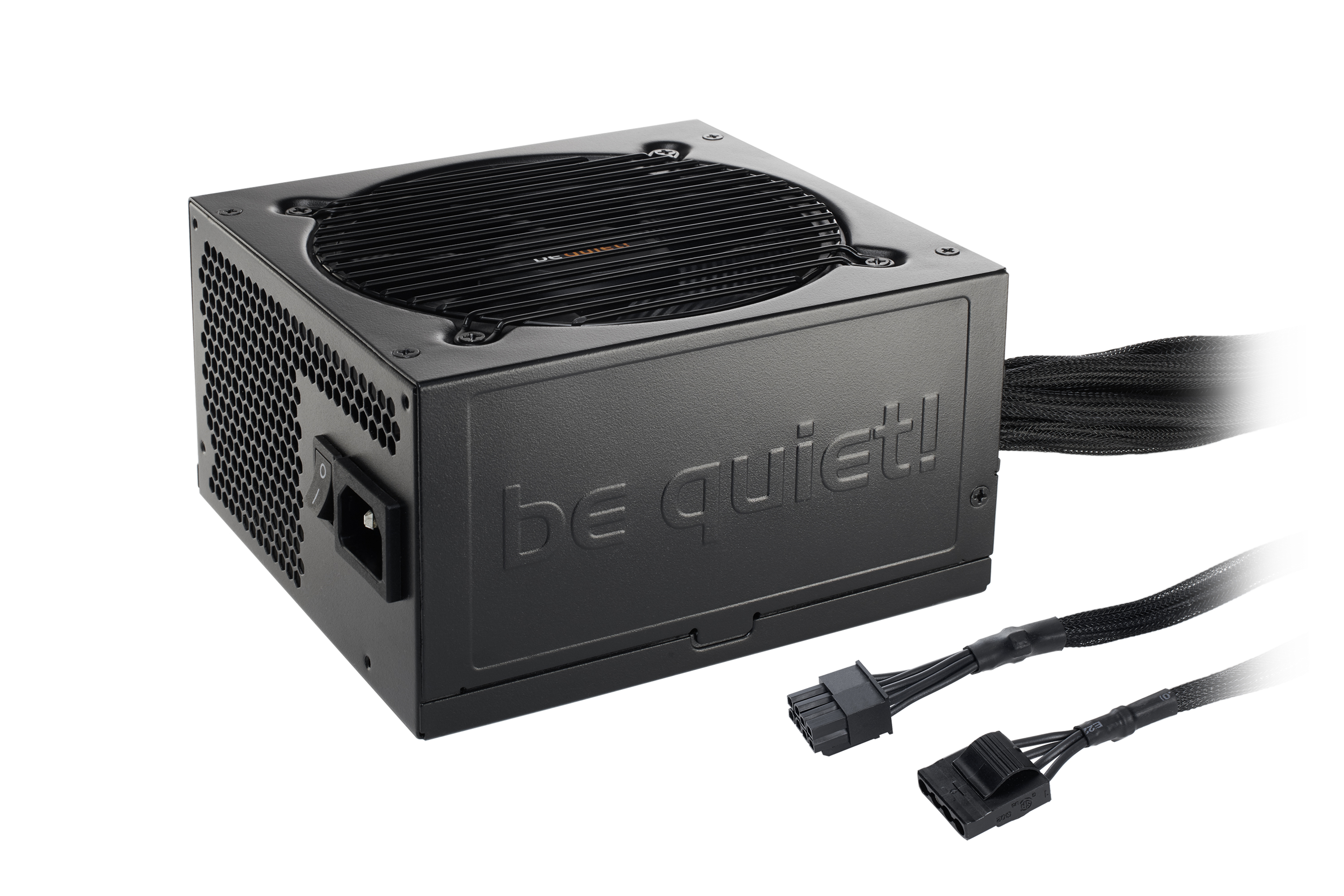

HIGH-QUALITY SLEEVED CABLES
Keeping your system tidy and good-lookingPure Power 500W is exquipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.
All models at a glance:
General data
| Model | PURE POWER 10 | 500W |
| Continuous power (W) | 500 |
| Peak power (W) | 550 |
| Form factor | Version 2.4 |
| Form factor EPS 12V | - |
| Topology | Active Clamp + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 8 / 5 |
| Power factor at 100% load | >0.99 |
| Modern standby | - |
| Power consumption in standby (W) | 0.10 |
| Average life time (h / 25°C) | 100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Silver |
| Efficiency (%) at 230V, 2% load | - |
| Efficiency (%) at 230V, 10% load | - |
| Efficiency (%) at 230V, 20% load | 90.3 |
| Efficiency (%) at 230V, 50% load | 91.8 |
| Efficiency (%) at 230V, 100% load | 90.7 |

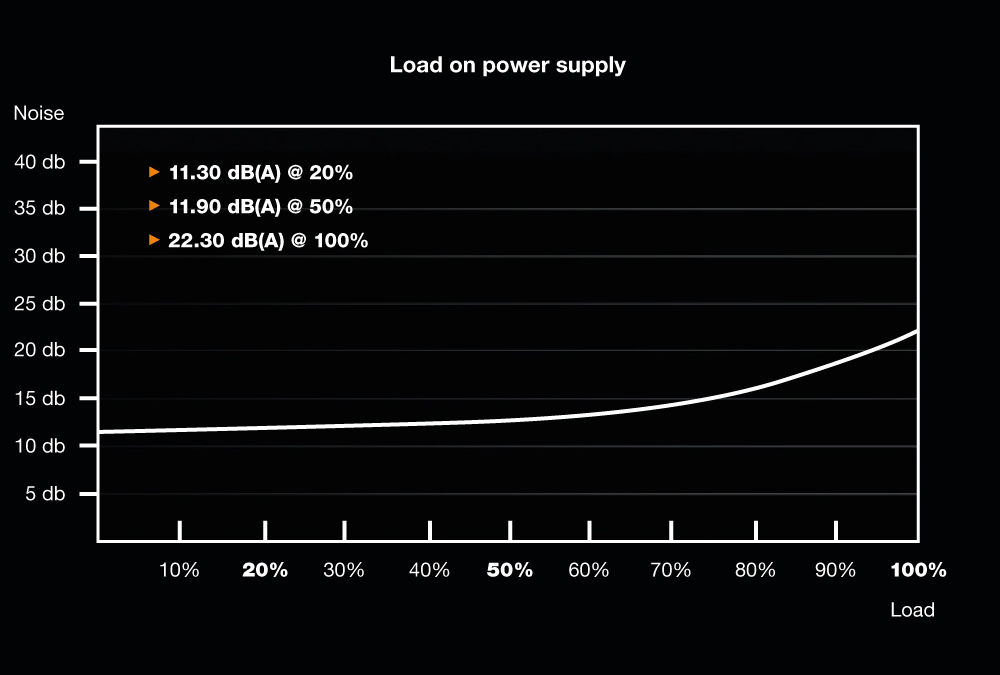

Fan and cooling technology
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 1170 |
| dB(A) at 10% load | - |
| dB(A) at 20% load | 11.3 |
| dB(A) at 50% load | 11.9 |
| dB(A) at 100% load | 22.3 |
Output
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 24 |
| +5V (A) | 15 |
| +12V1 (A) | 28 |
| +12V2 (A) | 20 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 480 |
| Max. combined power 12VHPWR (W) | 0 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 34 |
| Hold-up time at 80% load (ms) | - |
| Power good signal (ms) | 100 - 500 |

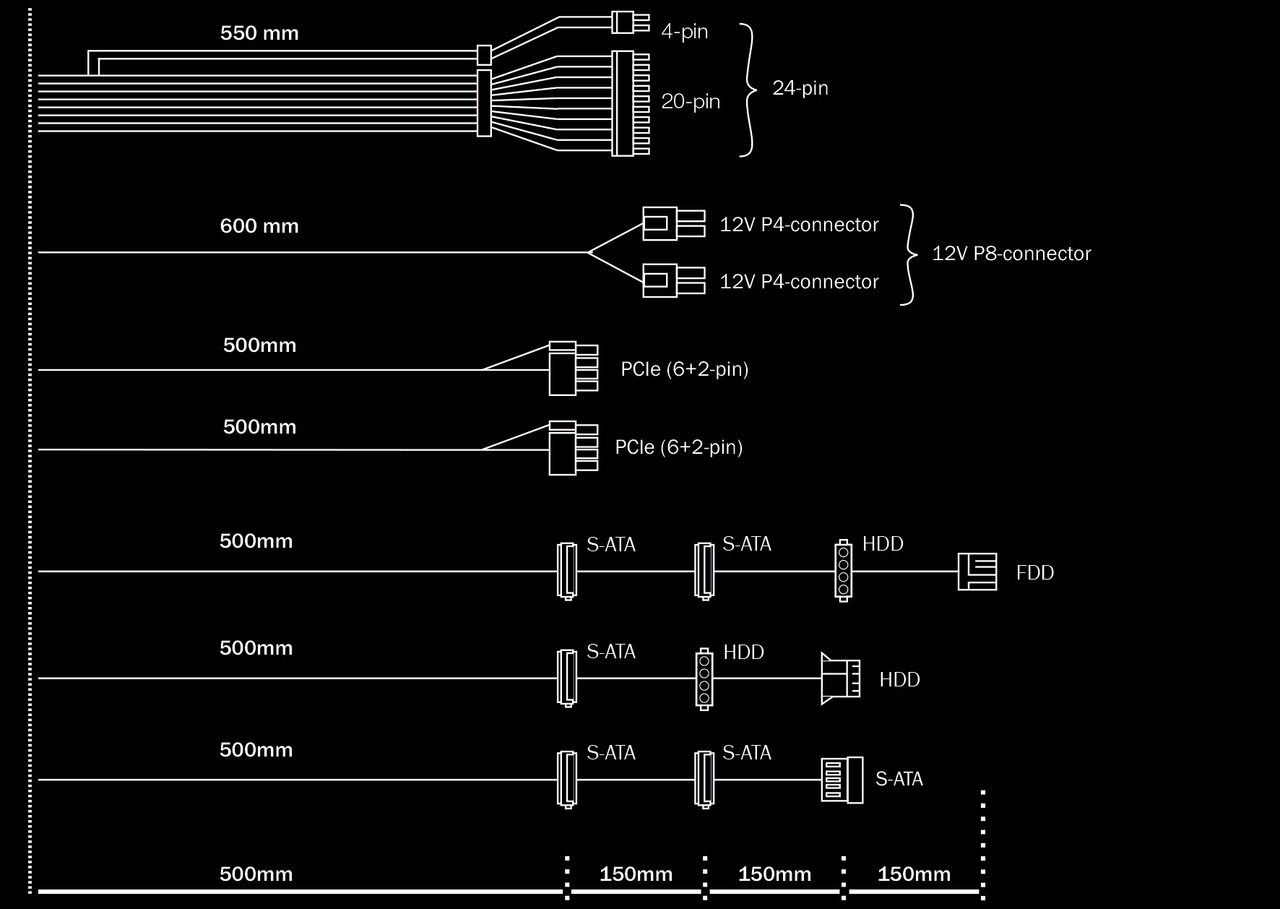

Cables and connectors
| Modular cables | - |
| Sleeved cables | all |
| Flat cables | - |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | - |
| P4 (CPU) | - |
| 12VHPWR cables | 0 |
| PCI-e 6+2-pin (GPU) | 2 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 3 |
| FDD (Floppy) | 1 |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | - |
Safety certification
| BSMI | ✓ |
| CB | ✓ |
| CCC | - |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | - |
Environmental directives
| Energy Star | 6.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | - |

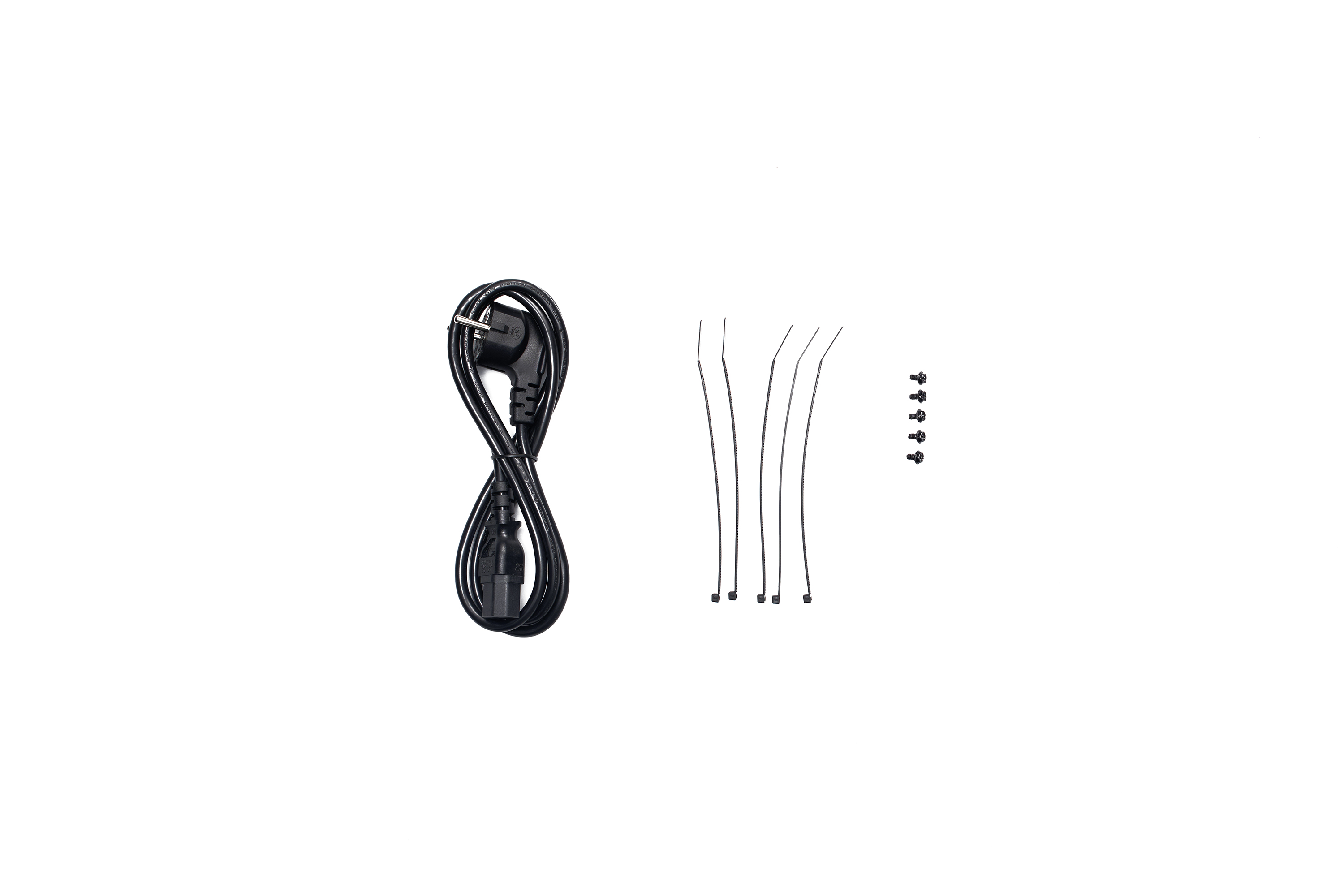

Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | DE, EN, ES, FR, PL, RU |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 150 x 150 x 86 |
| Weight (kg) | 1.96 |
| Color | Black |
Service
| Warranty (Years) | 3 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BN273 |
| EAN code | 4260052185322 |
| Dimensions, package (L x W x H), (mm) | 260 x 202 x 98 |
| Gross weight, package (kg) | 2.60 |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 550 x 325 x 233 |
| Gross weight, shipping box (kg) | 15.62 |
| RRP (€) | 71.90 |
