Article number: BP012EU
SYSTEM POWER 11
750WProven reliability, quiet operation
System Power 11 750W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 750W offers even at entry-level.
- ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Temperature-controlled 120mm quality fan reduces system noise
- Rock-solid stability with a strong 12V-rail
- Tight voltage regulation using DC-to-DC technology
- One PCIe 5.1 12V-2x6 600W and 3 PCIe 6-2 connectors for high-end GPUs
- Stand-by drain of less than 0.15 watts
- 80 PLUS® Bronze efficiency (up to 90.0%)
Characteristics
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specificationsSystem Power 11 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. It handles power excursions up to double its rated power with ease. This makes the PSU versatile and the perfect choice for systems of today and the ones to come.
VERY QUIET OPERATION
High-quality fan for low noiseSystem Power 11 750W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPUSystem Power 11 750W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operationThe 80 PLUS® Bronze certification of System Power 11 750W Bronze with an efficiency rating of up to 90.0% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics supportSystem Power 11 750W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
“System Power is the entry to silent PC building, which still offers up to 80PLUS® Gold efficiency. With System Power we offer you everything you need for a reliable and cost-efficient operation.”
Christian Berndt, Product Compliance Manager
All models at a glance:
General data
| Model | System Power 11 750 W |
| Continuous power (W) | 750 |
| Peak power (W) | - |
| Form factor | Version 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Double forward + DC-DC |
| Digitally controlled | - |
| Voltage (Vac) | 200 - 240 |
| Frequency (Hz) | 50 |
| Input current (A) | 5 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Efficiency
| 80 PLUS certification | Bronze |
| Efficiency (%) at 230V, 2% load | 65.5 |
| Efficiency (%) at 230V, 10% load | 85.0 |
| Efficiency (%) at 230V, 20% load | 89.1 |
| Efficiency (%) at 230V, 50% load | 90.0 |
| Efficiency (%) at 230V, 100% load | 86.6 |
Fan and cooling technology
| Cybenetics Noise Rating | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 10.5 |
| dB(A) at 20% load | 10.5 |
| dB(A) at 50% load | 12.3 |
| dB(A) at 100% load | 33.4 |
Output
| Multi-rail operation (12V rails) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 62.5 |
| +12V2 (A) | - |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 750 |
| Max. combined power 12VHPWR (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 17.34 |
| Hold-up time at 80% load (ms) | 21.5 |
| Power good signal (ms) | 100 - 150 |

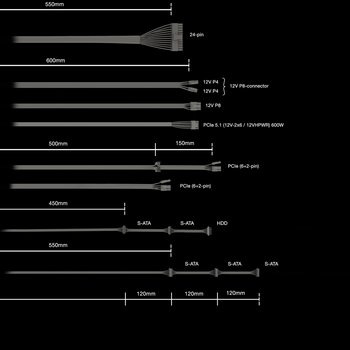

Cables and connectors
| Modular cables | - |
| Sleeved cables | P24 |
| Flat cables | P4+4, P8, PCIe, drives |
| Maximum cable length (cm) | 55 |
| Cable length to motherboard (cm) | 65 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 3 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 1 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | - |
| CB | ✓ |
| CCC | - |
| CE | ✓ |
| cRUus | - |
| cTUVus | - |
| CU | ✓ |
| FCC | - |
| RCM | - |
| TÜV | ✓ |
| UKCA | ✓ |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | - |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | - |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 86 x 150 x 140 |
| Weight (kg) | 2.04 |
| Color | Black |
Service
| Warranty (Years) | 5 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BP012EU |
| EAN code | 4260052191880 |
| Dimensions, package (L x W x H), (mm) | 268 x 195 x 97 |
| Gross weight, package (kg) | 2.4 |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 556 x 311 x 218 |
| Gross weight, shipping box (kg) | 15.6 |
| RRP (€) | 79.90 |
