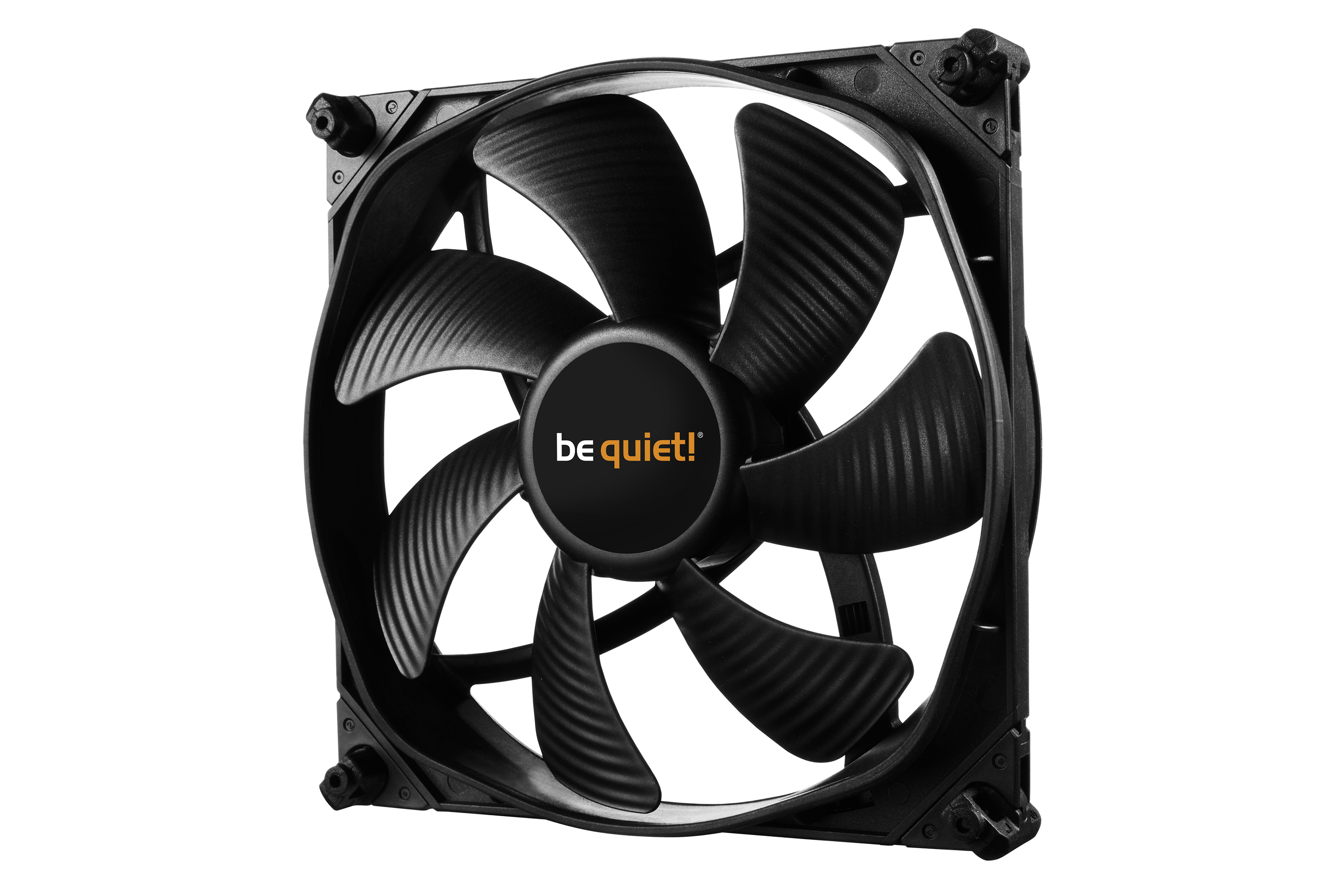

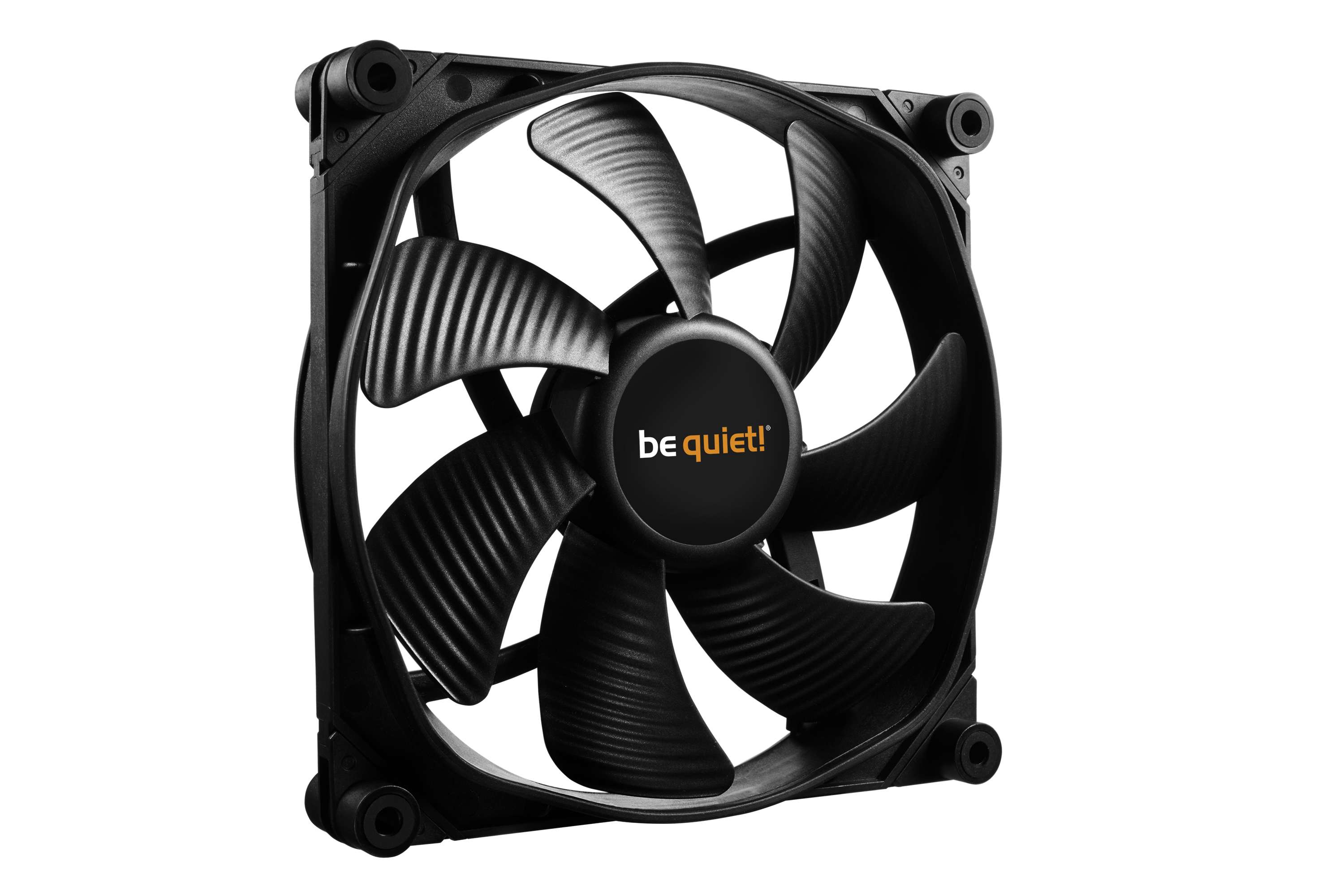

SILENT WINGS 3
140mm
SILENT WINGS 3
140mmNo Compromise Silence and Performance
be quiet! Silent Wings 3 140mm stands for state-of-the-art technology, virtually inaudible operation and superior cooling. It meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.
- Virtually inaudible operation at max. 15.5dB(A)
- 6-pole fan motor for less power consumption and vibration
- Fluid-dynamic bearing enables super-long life span of 300,000h
- Fan frame with funnel-shaped air inlets for extremely high air pressure
- 7 fan blades offer an optimized airflow
- German product conception, design and quality control
- 3 years manufacturer’s warranty
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
6-POLE FAN MOTOR
State-of-the-art technology6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet operation of max. 15.5dB(A).
IC MOTOR CONTROLLER
Silence optimized operationAdvanced high-quality IC motor controller reduces electrical noise.
SURFACE-OPTIMIZED FAN BLADES
For even better cooling7 fan blades with an optimized surface structure ensure virtually inaudible operation and excellent airflow.

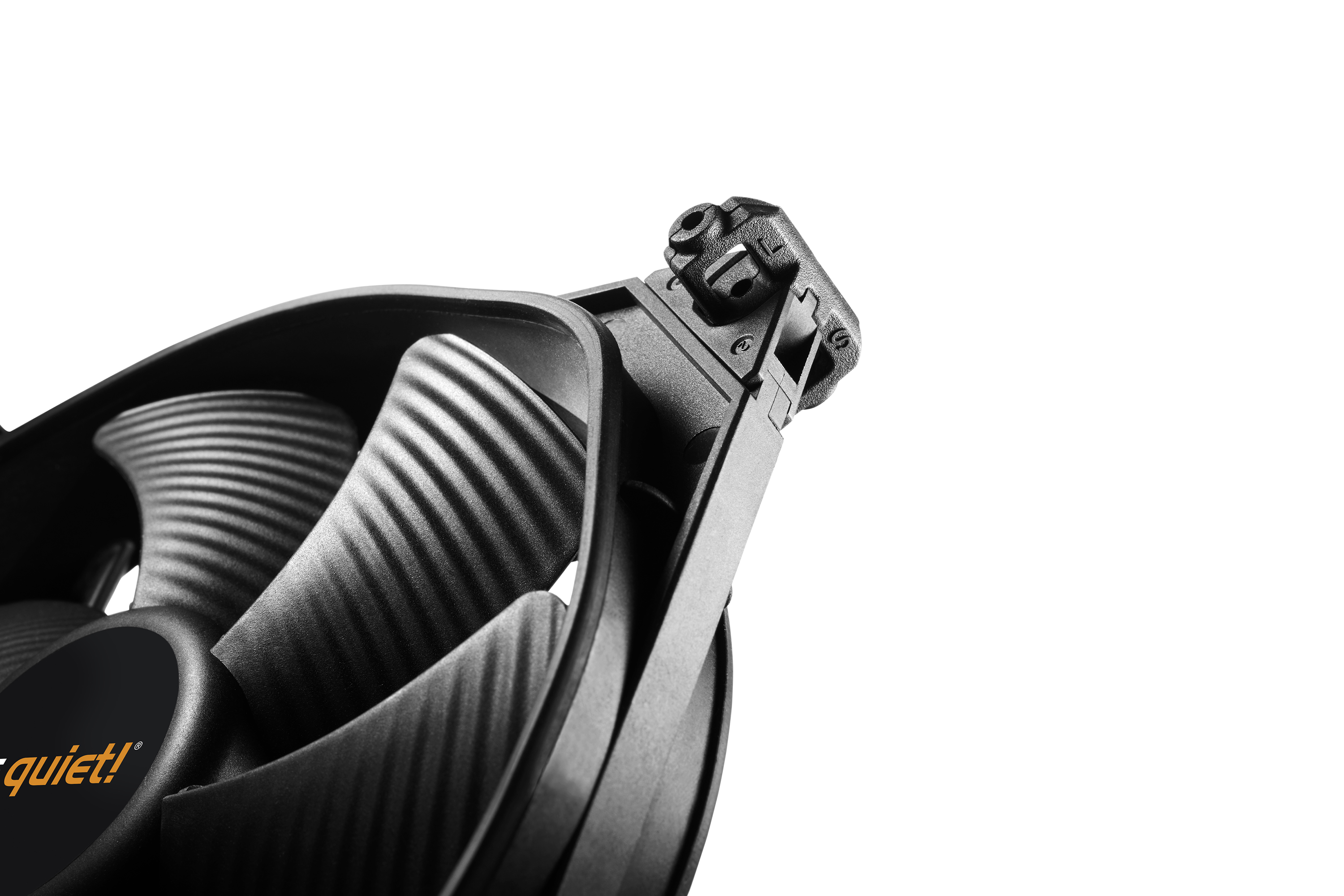

ANTI-VIBRATION MOUNTINGS
Virtually inaudible operationRemovable anti-vibration mountings on all 4 edges of the fan reduce vibrations transmitted to the PC case to an absolute minimum.
INGENIOUS FAN FRAME
A design for even greater performanceThe rubberized fan frame is equipped with funnel-shaped air inlets for excellent air circulation and extremely high air pressure, which makes the fan the perfect choice for gaming and multimedia PCs, overclocked systems and for use with radiators.
DURABLE FLUID-DYNAMIC BEARING
For a super long life spanThe advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours and greatly reduced operating noise.
All models at a glance:
General data
| Model | Silent Wings 3 140mm |
| Dimensions (mm) | 140 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1000 |
| Noise level at 100% PWM / 12V (dB(A)) | 15.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 59.5 / 101.09 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.08 |

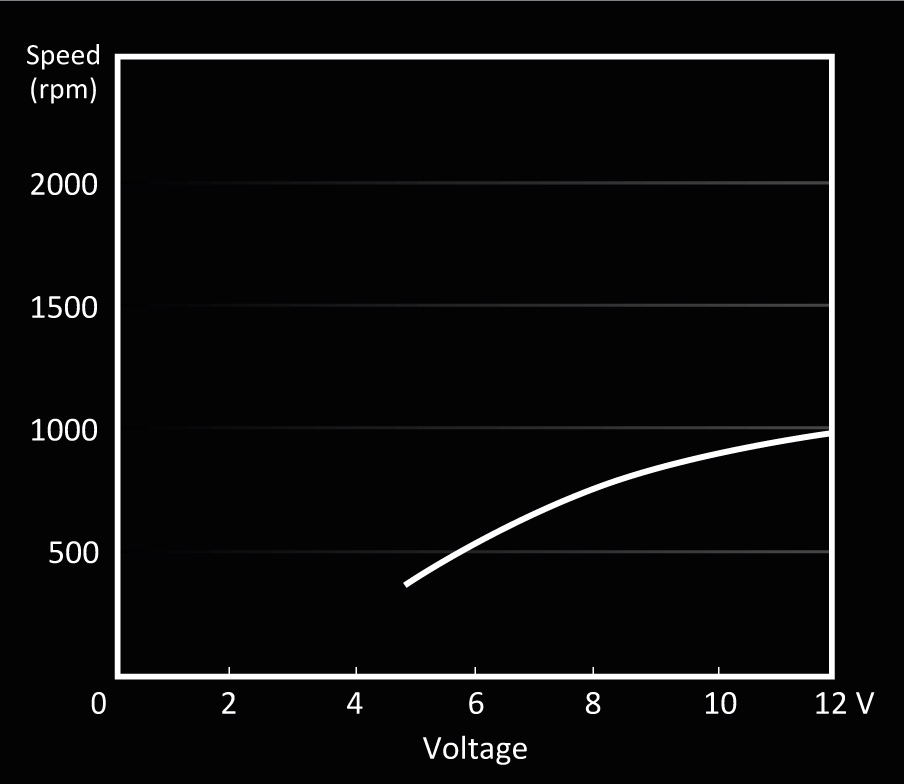

Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 140 x 25 x 140 |
| Weight incl. fixed cables (g) | 167 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 3-pin |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 59.5 / 101.09 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.08 |
| Noise level at 100% PWM / 12V (dB(A)) | 15.5 |
| Lifespan (h / 25°C) | 300,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | - |
| Safety current (A) | 0.3 |
| Input power (W) | 0.72 |
| Rated Current LED (A) | - |

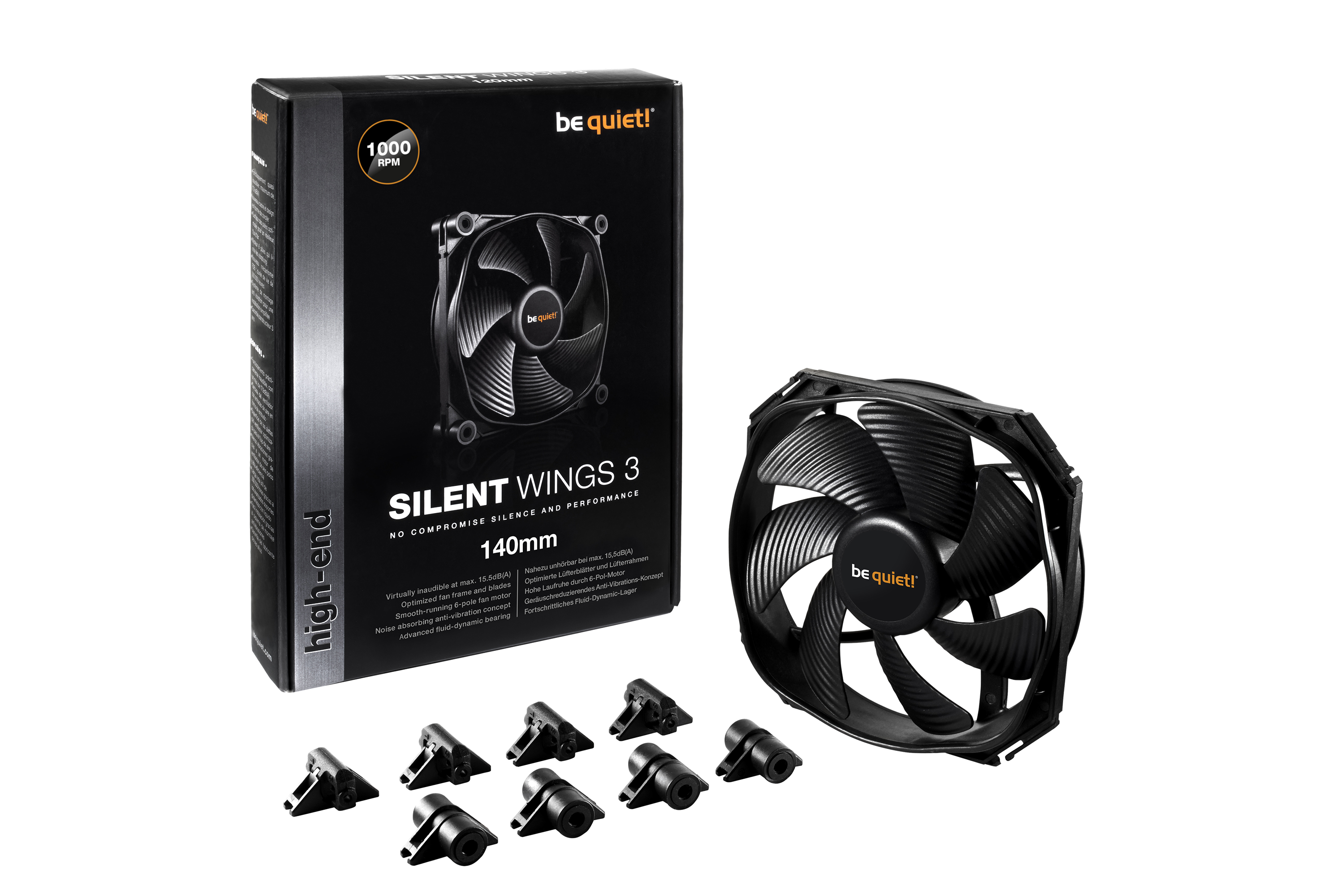

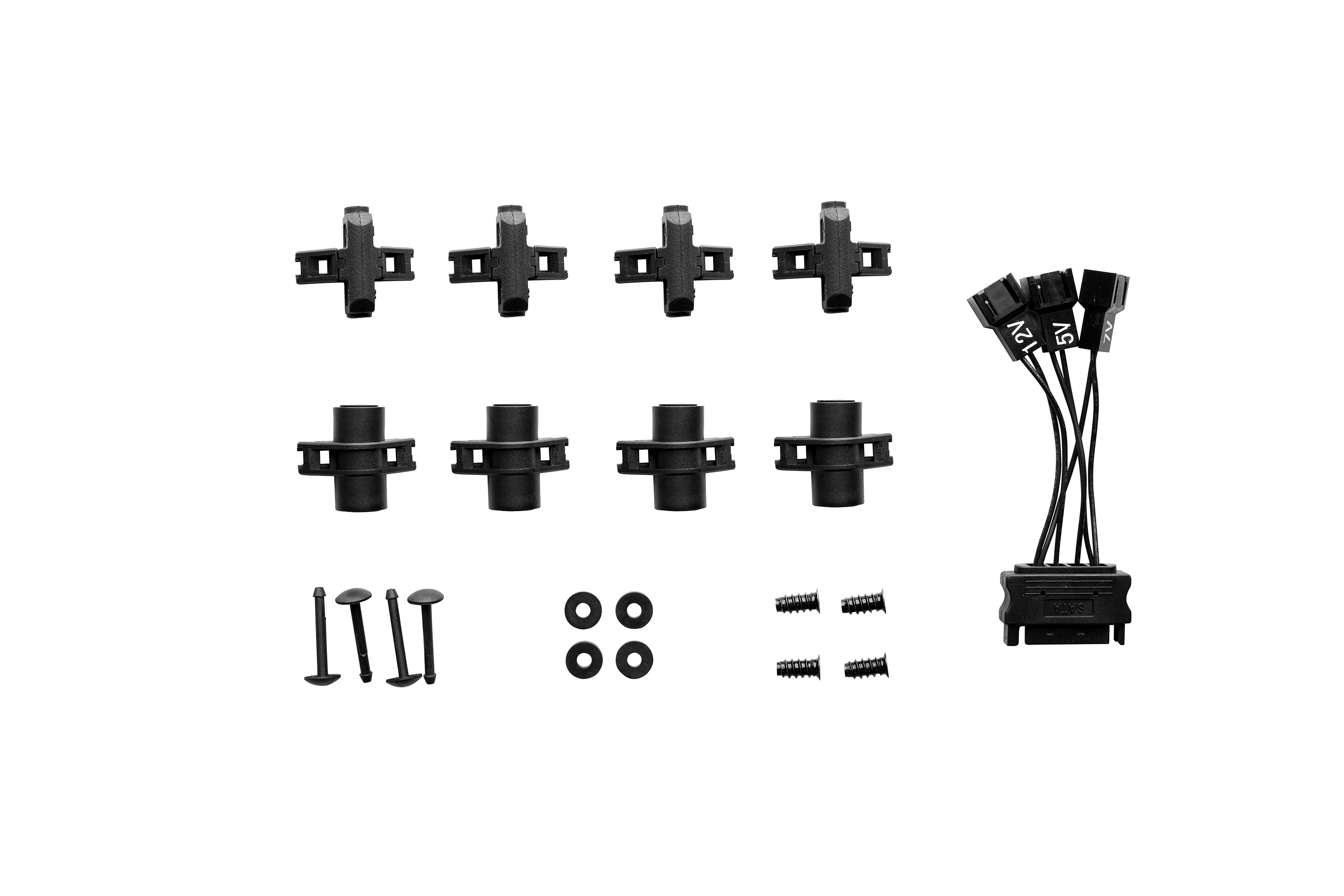

Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | ✓ |
| 12V to 5V adapter | ✓ |
| Screws | 5 |
| Push pins | 5 |
| hard plastic washer | 5 |
| Others | Rubber & hard plastic mountings |
Safety certification
| Approvals | CE / RoHS / RU / TÜV / WEEE |
Environmental directives
| RoHS | - |
| WEEE | ✓ |
| Triman | - |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BL065 |
| EAN code | 4260052184257 |
| Dimensions, package (L x W x H), (mm) | 205 x 32 x 155 |
| Gross weight, package (kg) | 0.362 |
| Pieces per packaging unit | 32 |
| Dimensions, shipping box (L x W x H), (mm) | 448 x 302 x 363 |
| Gross weight, shipping box (kg) | 12.27 |
| RRP (€) | 23.90 |
