Article number: BL132
LIGHT WINGS LX
120mm PWM Reverse Black
LIGHT WINGS LX
120mm PWM Reverse BlackGreat performance and impressive lighting

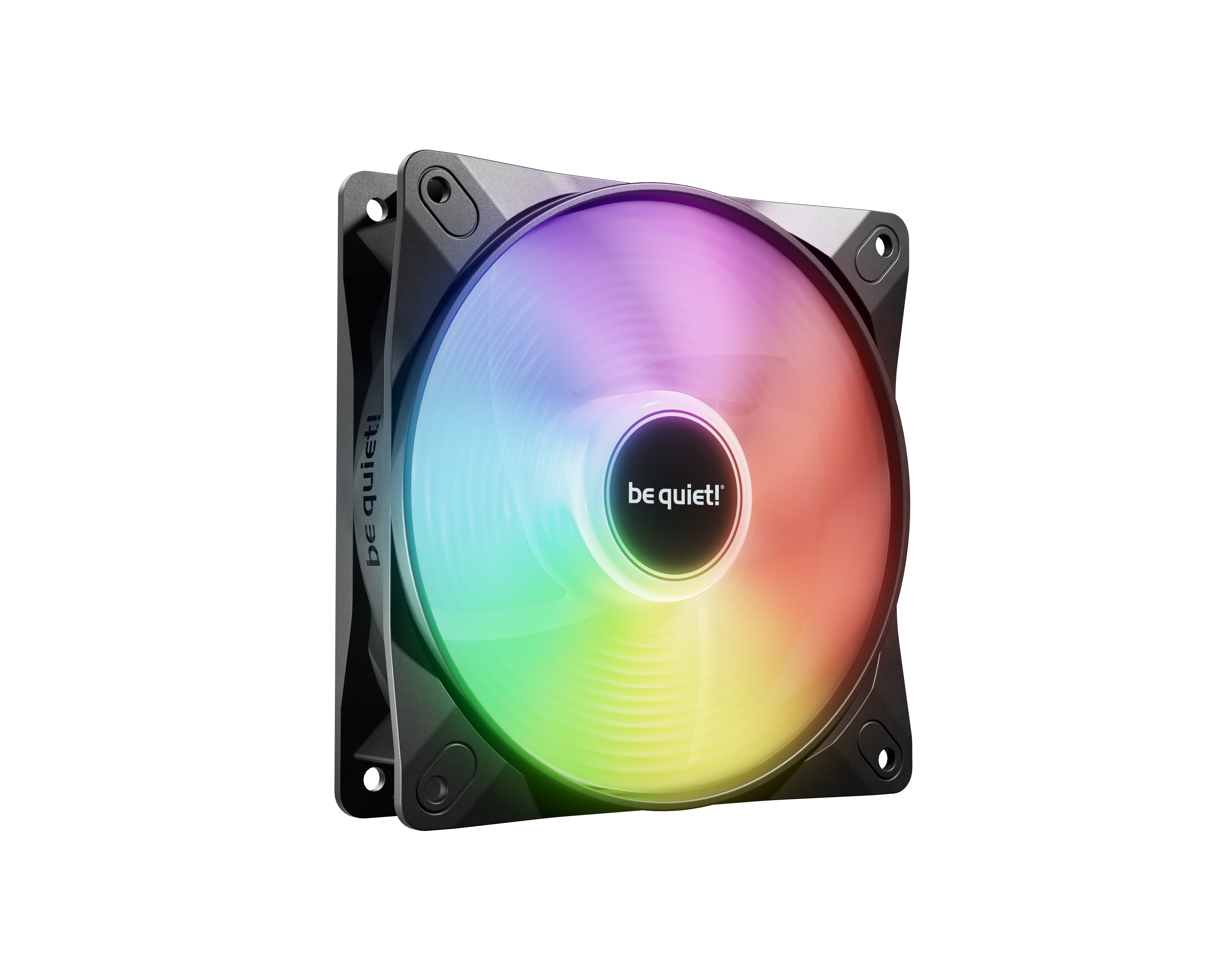

The Light Wings LX 120mm PWM Reverse Black boasts reversed fan blades and an illuminated impeller for great performance and lighting.
- 7 optimized and reversed fan blades with perfect angle for extraordinary air pressure
- Reversed fan blades are ideal as side or bottom intake
- Illuminated hub and frosted fan blades for unmistakable lighting effects that visually upgrade every PC system
- Multiple colors and modes for an individual look thanks to 16 LEDs
- ARGB connection cable with daisy chain option
- Low starting rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of up to 60,000 hours
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
SHOW WHAT YOU GOT

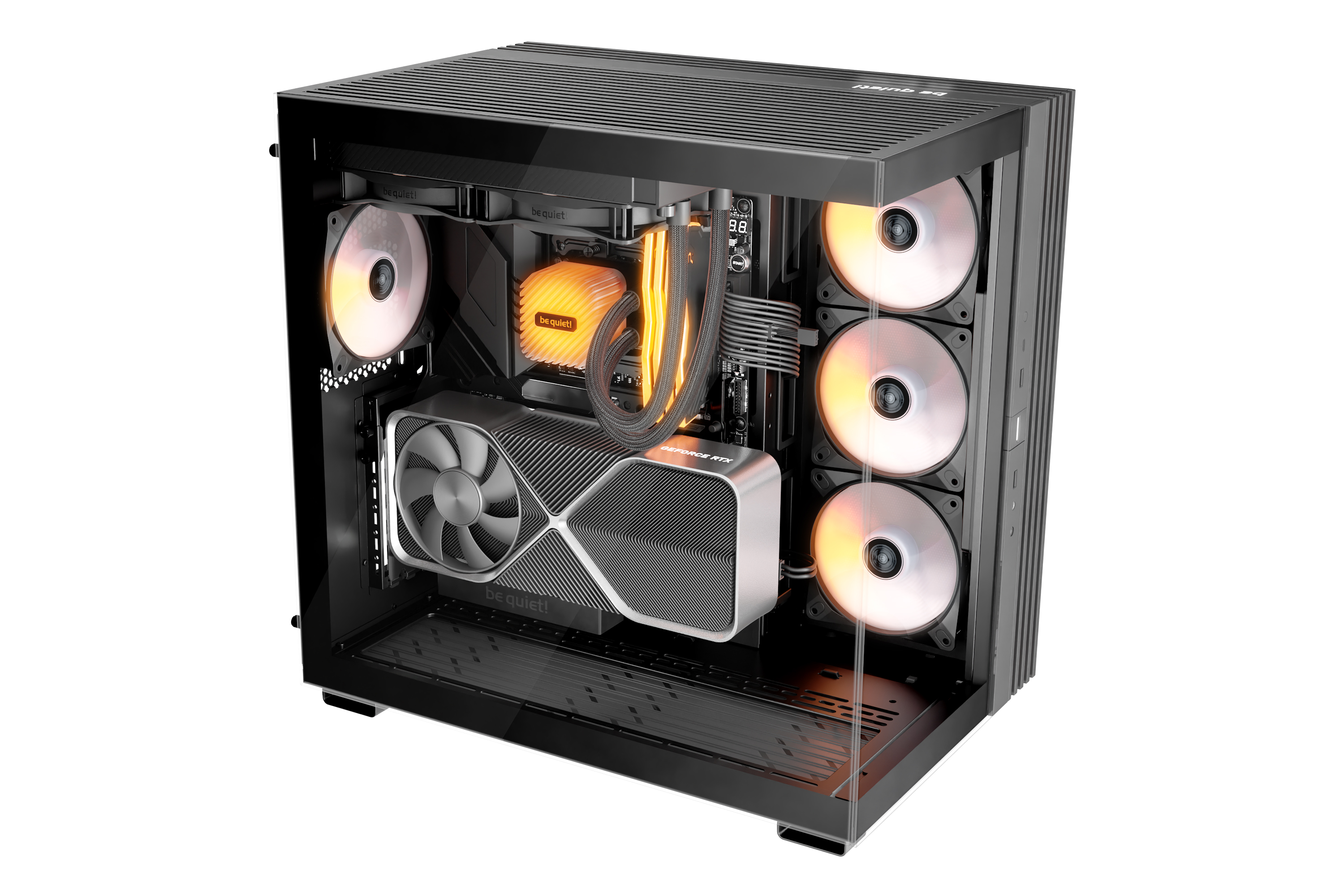

Perfect choice as a side or bottom intakeLight Wings LX 120mm PWM Reverse Black undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your show case and let friends and family gaze in awe.
IMPRESSIVE LIGHTING

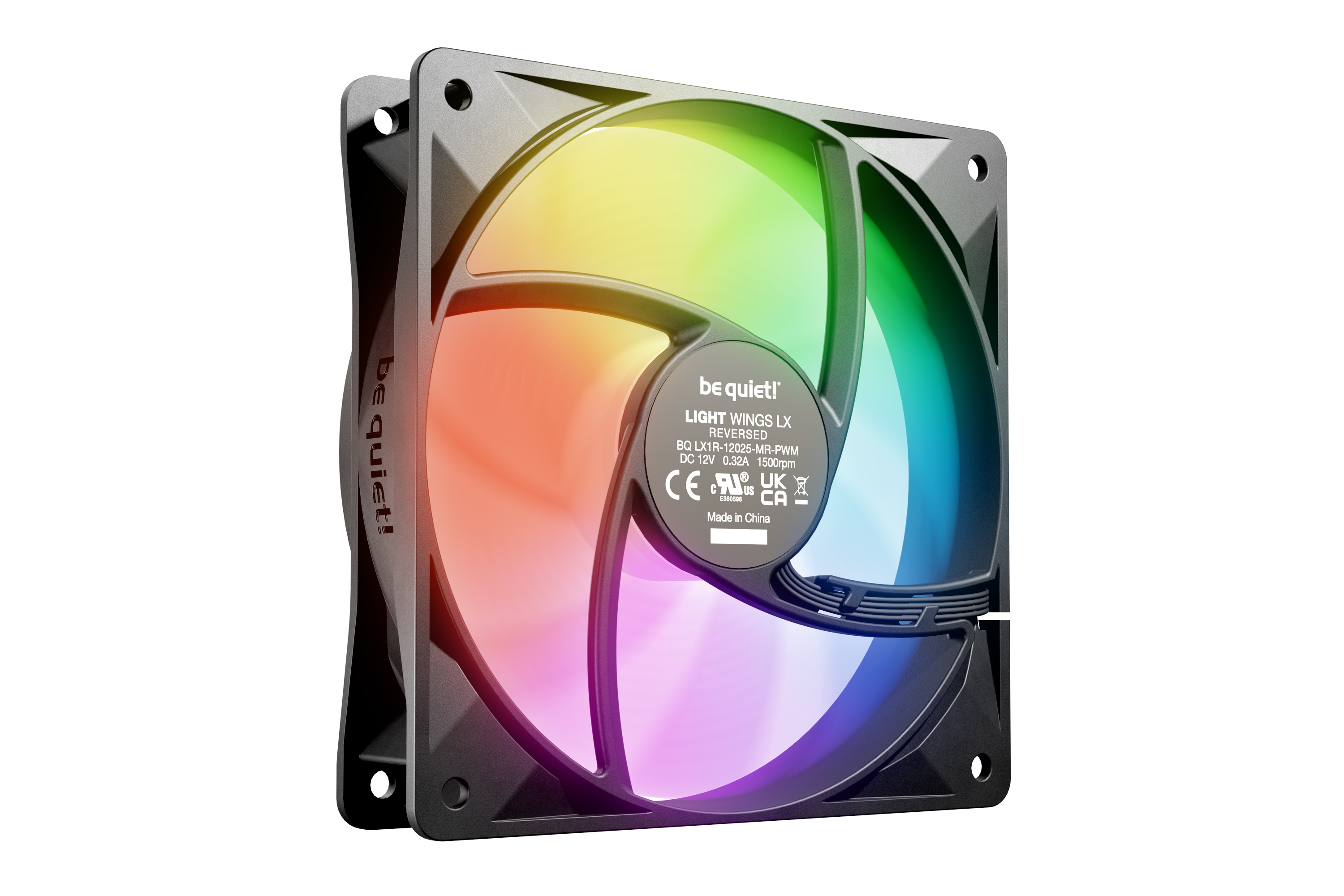

Lots of illumination possibilities16 LEDs are located inside the hub of the impeller of the Light Wings LX 120mm PWM Reverse Black and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
YOUR CASE FAN OF CHOICE

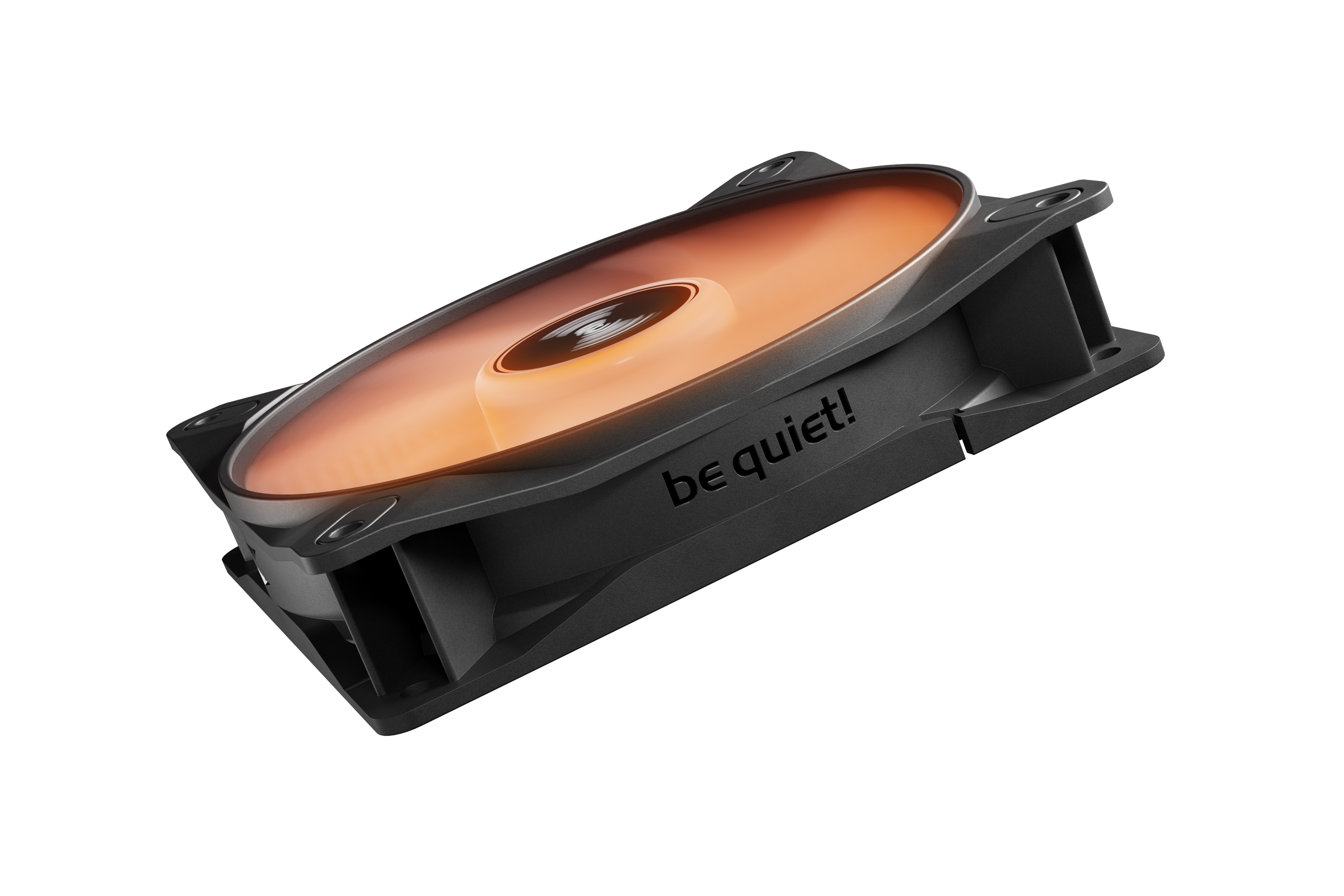

Optimized fan blades and frameLight Wings LX 120mm PWM Reverse Black features a fan frame outlet that minimizes air leaks. In addition, the fan blades are optimized for maximum airflow, making this fan the best-in-class choice for virtually any case configuration: especially in show cases like the Light Base series as a side or <br> bottom intake.
DAISY-CHAIN IT!
One connector for all your Light Wings LX fansThe ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX Reversea long-lasting companion
Light Wings LX 120mm PWM Reverse Black is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
All models at a glance:
General data
| Model | Light Wings LX 120mm PWM Reverse |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed at 100% PWM / 12V (rpm) | 1500 |
| Noise level at 100% PWM / 12V (dB(A)) | 28.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 48.8 / 83.0 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.04 |
Infographics
Mechanical specifications

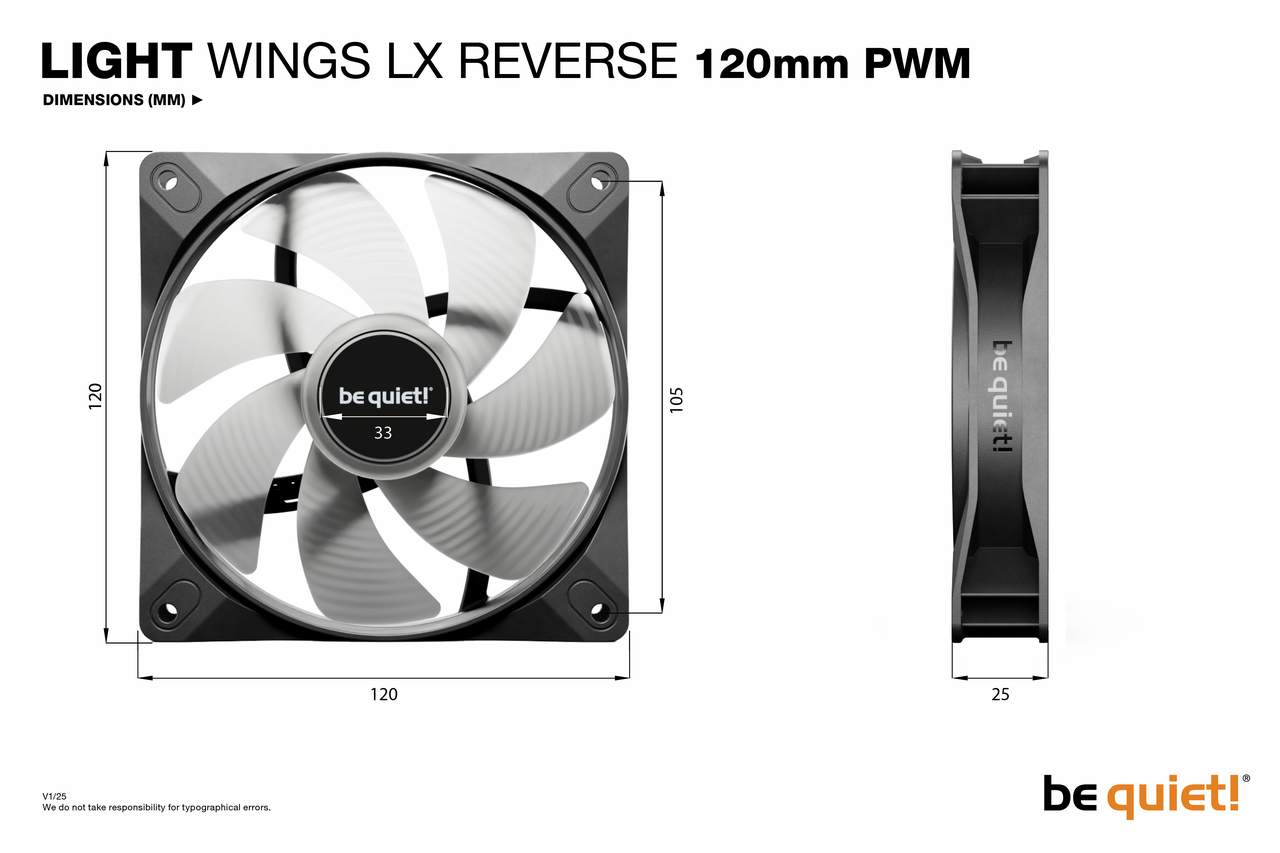

| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 133 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | ✓ |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 48.8 / 83.0 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.04 |
| Noise level at 100% PWM / 12V (dB(A)) | 28.5 |
| Lifespan (h / 25°C) | 60,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.8 |
| Rated Current LED (A) | 0.39 |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |

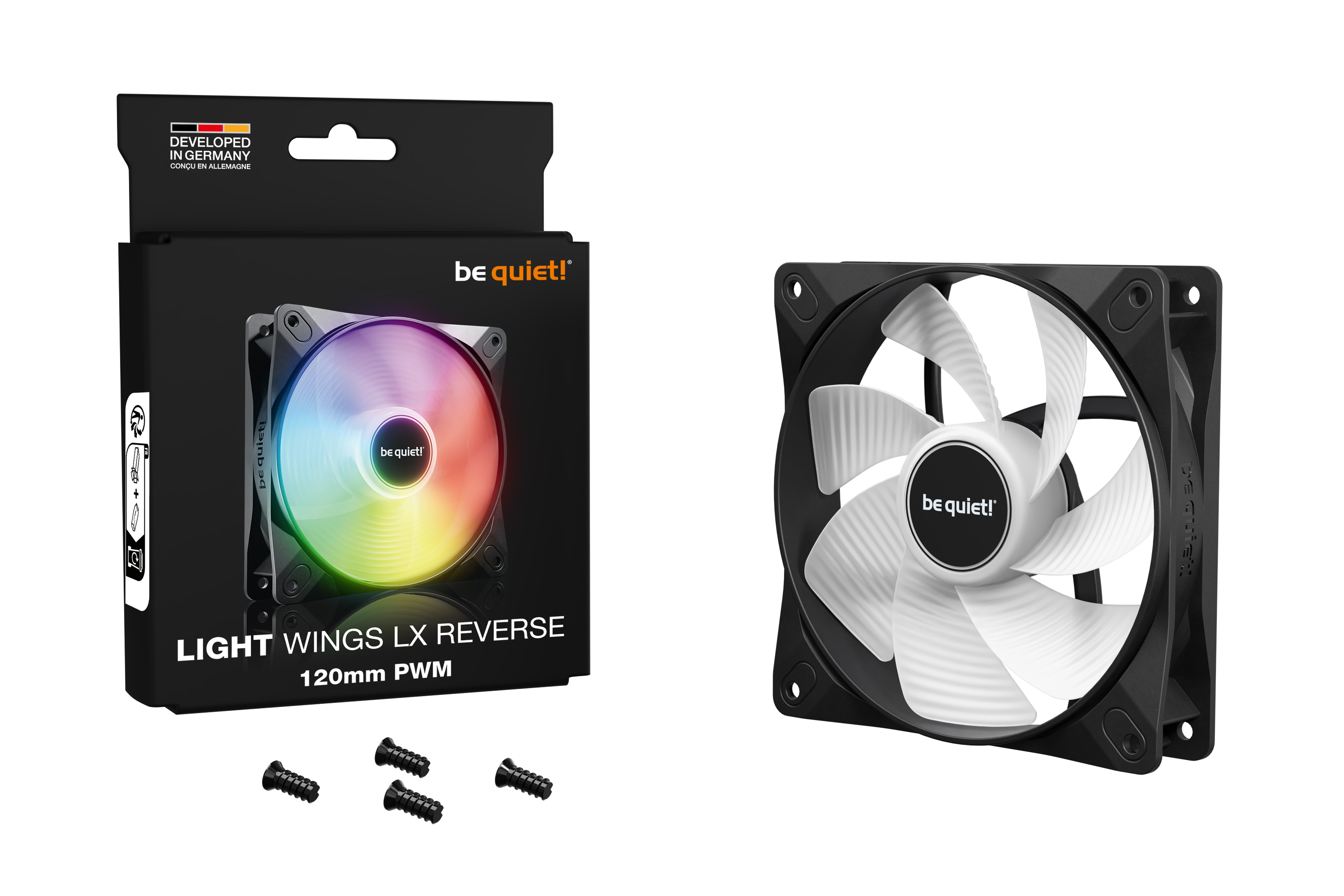

| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL132 |
| EAN code | 4260052192870 |
| Dimensions, package (L x W x H), (mm) | 164 x 27 x 122 |
| Gross weight, package (kg) | 0.17 |
| Pieces per packaging unit | 60 |
| Dimensions, shipping box (L x W x H), (mm) | 433 x 319 x 290 |
| Gross weight, shipping box (kg) | 10.83 |
| RRP (€) | 18.90 |
