Article number: BL134
LIGHT WINGS
140mm PWM Reverse Black

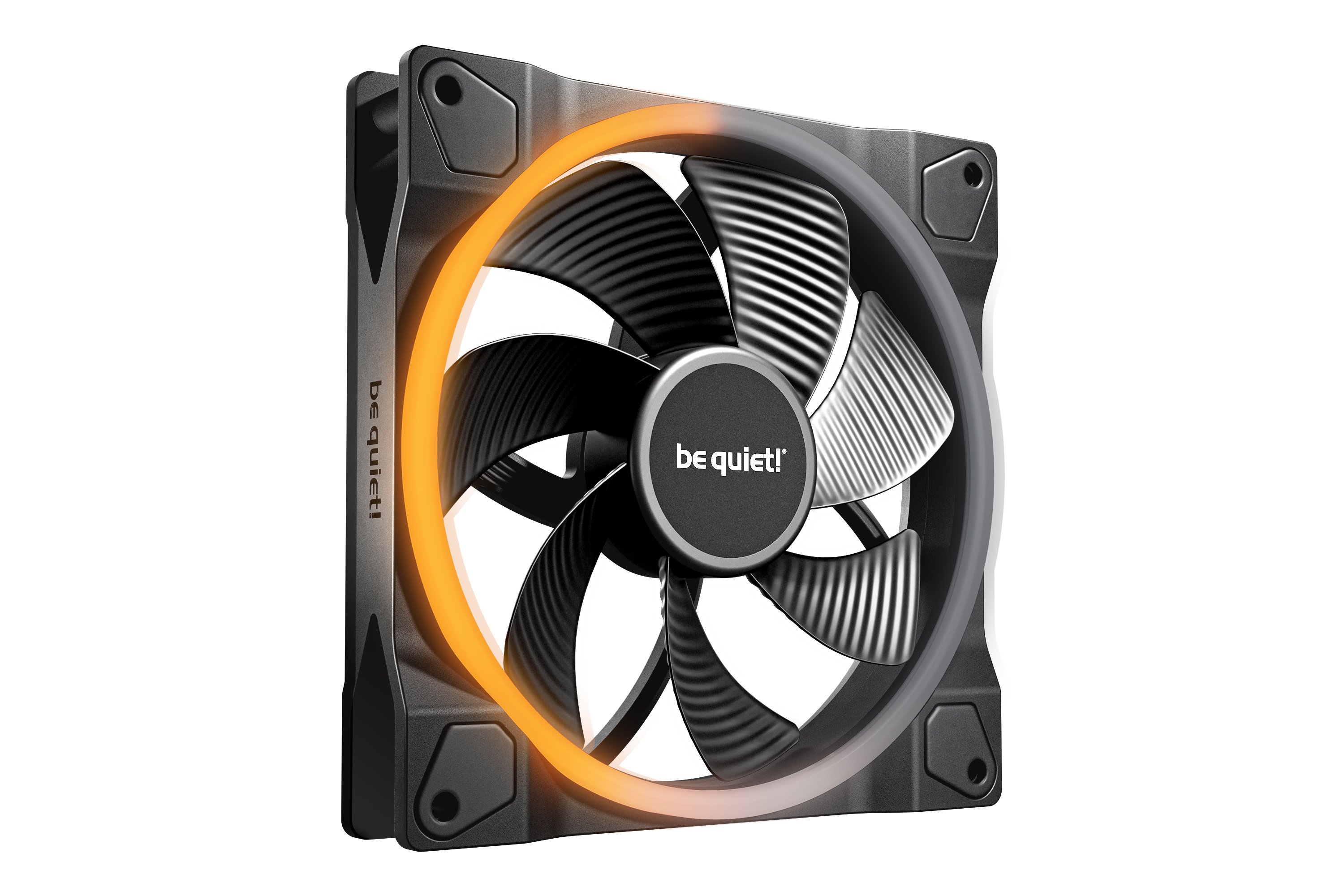

LIGHT WINGS
140mm PWM Reverse BlackImpressive lighting, superior cooling
Light Wings 140mm PWM Reverse Black offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
- 7 silence-optimized and reversed fan blades for high airflow and low noise-generating turbulences
- Reversed fan blades are ideal as side or bottom intake

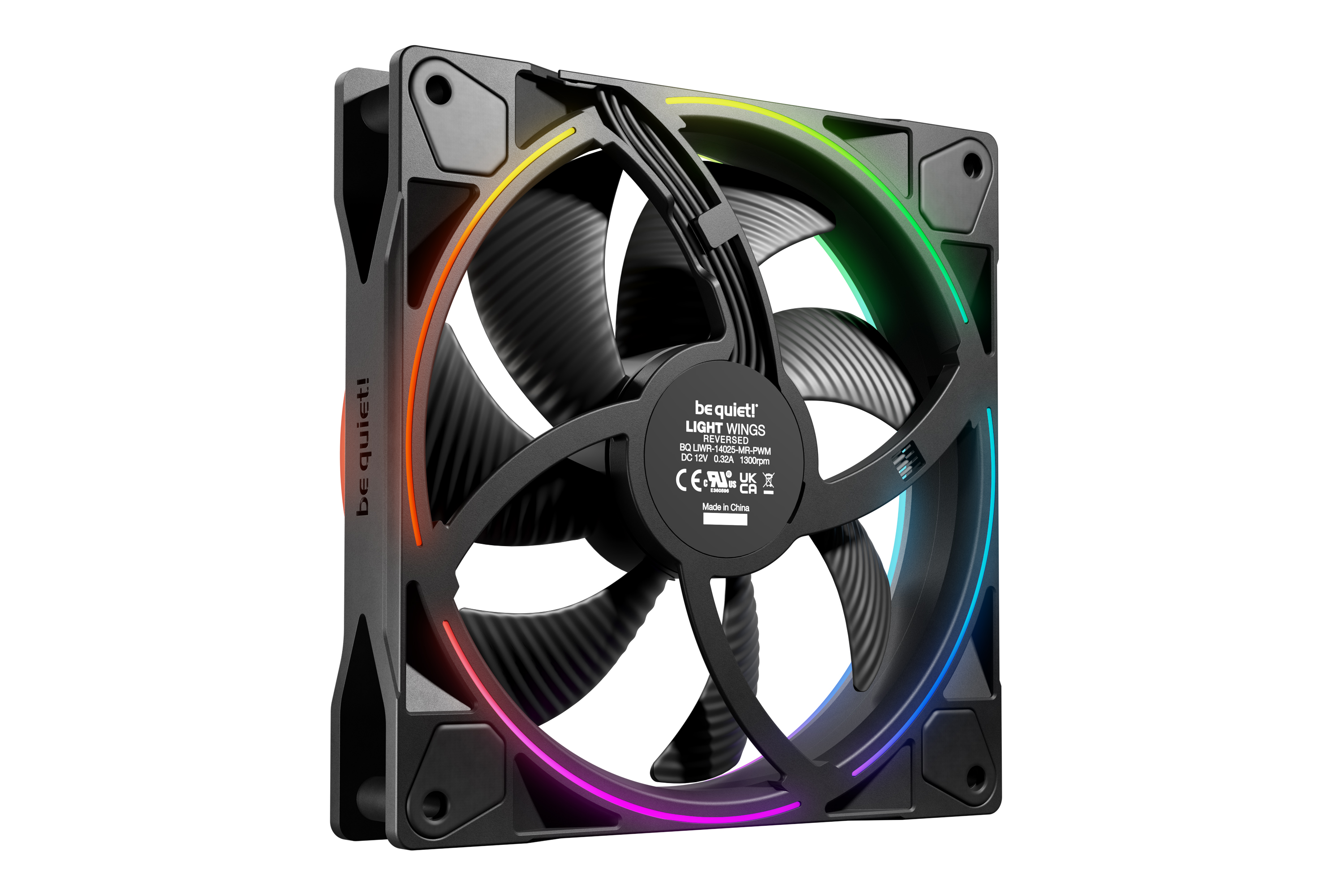

- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 20 LEDs
- Very quiet operation with max. 25.5dB(A)
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- 3-year manufacturer’s warranty
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics

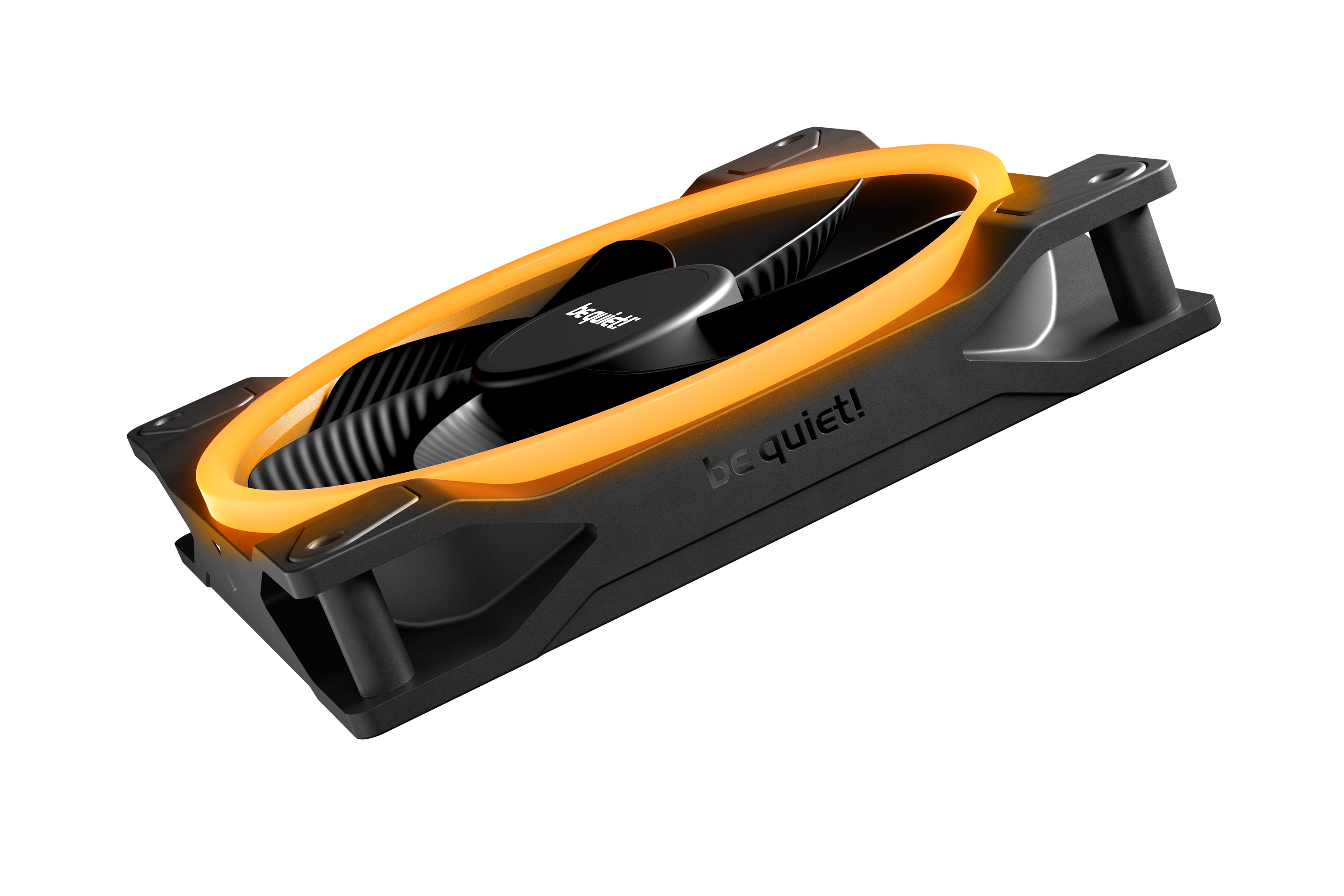

IMPRESSIVE LIGHTING
Lots of illumination possibilitiesLight Wings 140mm PWM Reverse Black offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.

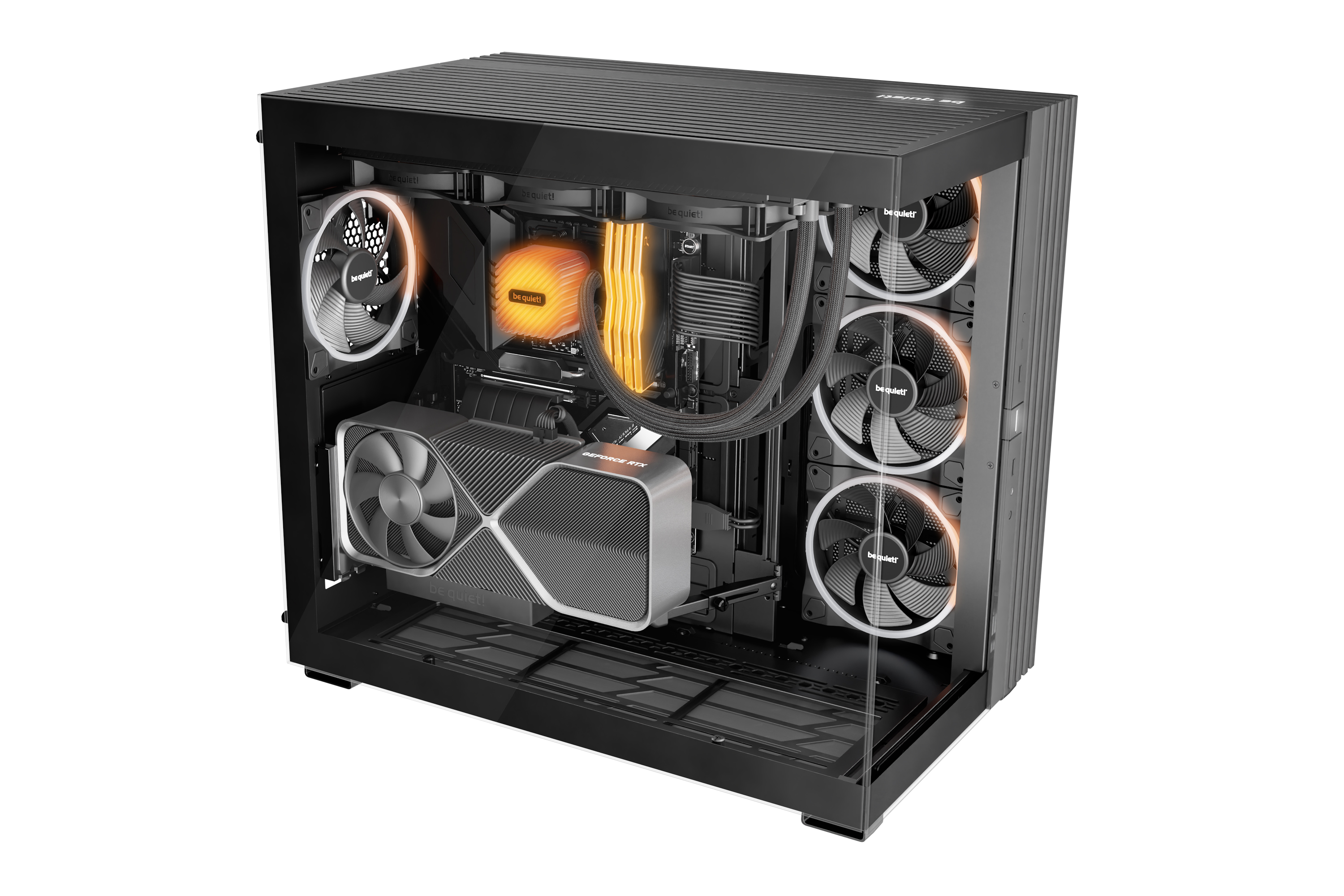

PERFECT CASE FAN
Your choice as a side or bottom intakeWith optimization for maximum airflow, Light Wings 140mm PWM Reverse Black is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized and reversed fan blades not only reduce noise-generating turbulences but also ensure Light Wings 140mm PWM provides the performance that is needed, even in demanding configurations.
VERY QUIET OPERATION
Acclaimed be quiet! low noise levelA highly optimized impeller achieves the silent operation be quiet! is famous for. With a noise level of 25.5dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and powerful operation. All features combine to make Light Wings 140mm PWM Reverse Black the fan of choice for silent show cases and gaming systems alike.
VARIABLE FAN SPEED FUNCTION
Adjusts the fan speed and associated noise levelPulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.
All models at a glance:
General data
| Model | Light Wings 140mm PWM Reverse |
| Dimensions (mm) | 140 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed at 100% PWM / 12V (rpm) | 1300 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 51.4 / 87.3 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.1 |
Infographics
Mechanical specifications

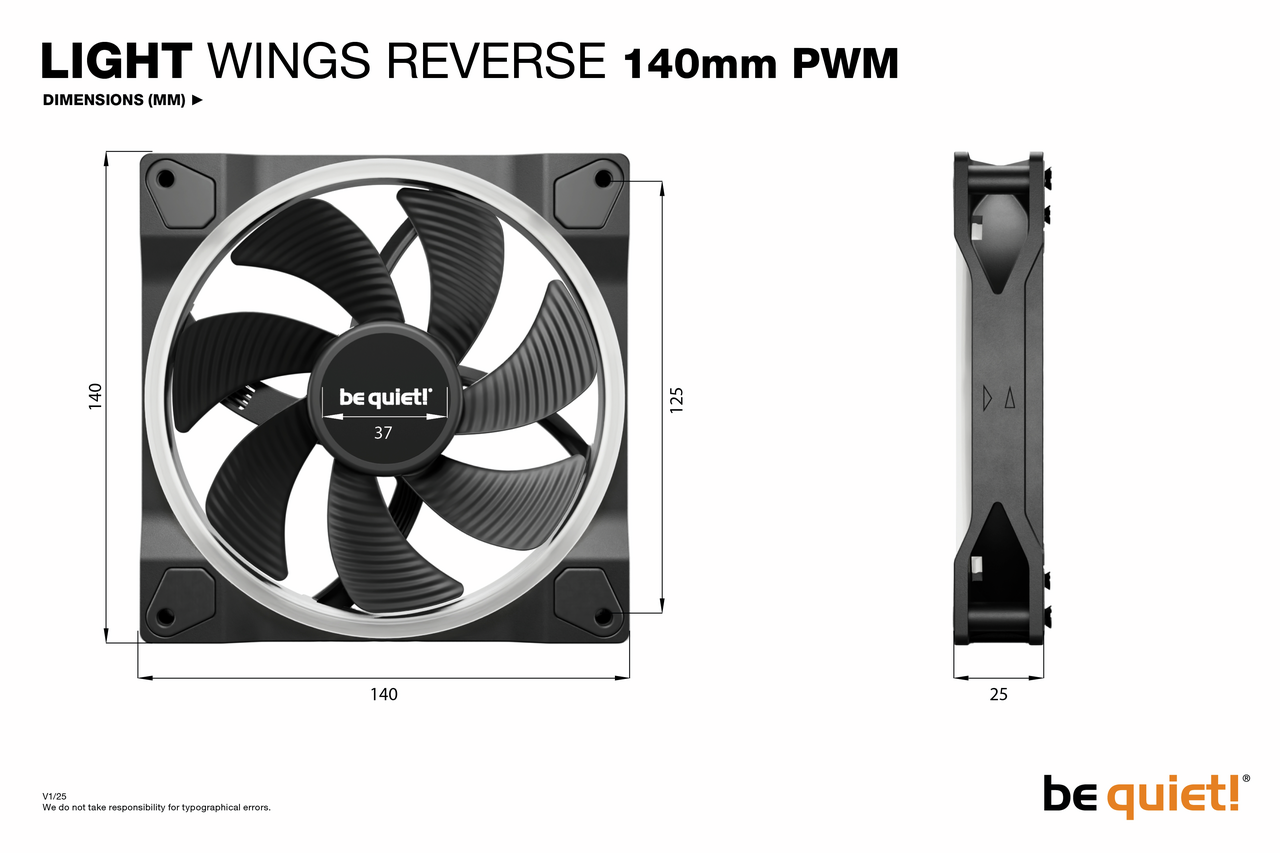

| Dimensions (L x W x H), (mm) | 140 x 25 x 140 |
| Weight incl. fixed cables (g) | 241 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | ✓ |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 51.4 / 87.3 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.1 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 60,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.08 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.8 |
| Rated Current LED (A) | 0.67 |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |

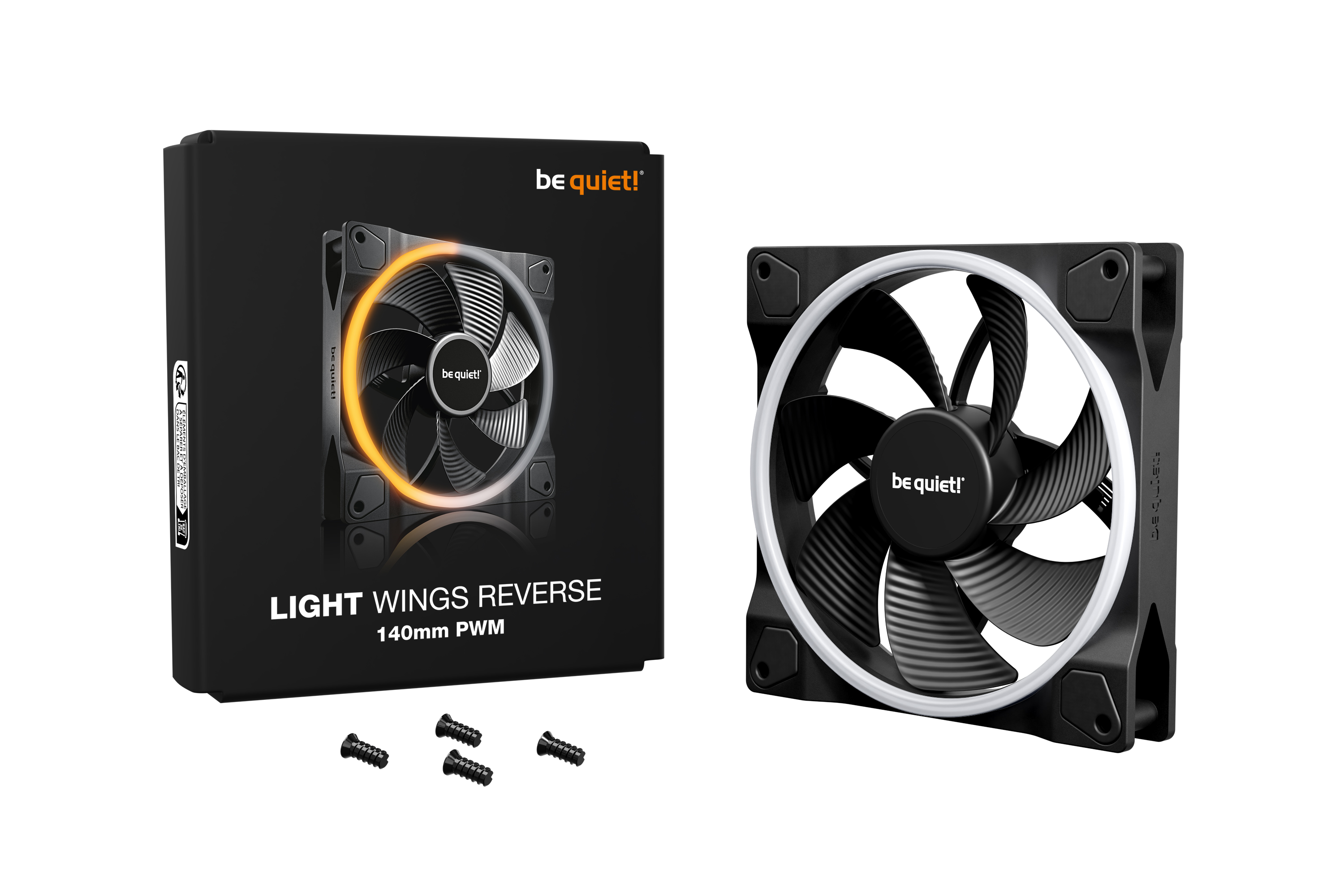

| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | - |
| WEEE | - |
| Triman | - |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL134 |
| EAN code | 4260052192894 |
| Dimensions, package (L x W x H), (mm) | 173 x 29.5 x 153 |
| Gross weight, package (kg) | 0.33 |
| Pieces per packaging unit | 30 |
| Dimensions, shipping box (L x W x H), (mm) | 478 x 320 x 200 |
| Gross weight, shipping box (kg) | 10.50 |
| RRP (€) | 27.50 |
