Article number: BL110
PURE WINGS 3
120mm PWM WhitePerformant, progressive, quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM White are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm PWM White can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
OPTIMIZED TO THE MAX
For unprecedented air pressure in its classThe fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM White. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM White.
PERFECT CASE FAN
Fan blades optimized for high airflowWith optimization for maximum airflow, Pure Wings 3 120mm PWM White is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 120mm PWM White provides the performance that is needed, even in demanding configurations.
ICONIC WHITE DESIGN
Instant timeless classic in an all-white designPure Wings 3 120mm PWM White trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM White a timeless classic and elegant addition to every gaming PC. Completely covered in white, this fan is especially suited for white PC builds.
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companionPure Wings 3 120mm PWM White is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.
“I love Pure Wings 3 for being the hidden gem in our portfolio. It is simply amazing how a mainstream fan can deliver this performance at such a low noise level! Pure Wings 3 is certainly a class of its own.”
Marvin Jindra, Director of Marketing & Partnerships
All models at a glance:
General data
| Model | Pure Wings 3 120mm PWM White |
| Dimensions (mm) | 120 |
| Color option | White |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1600 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |

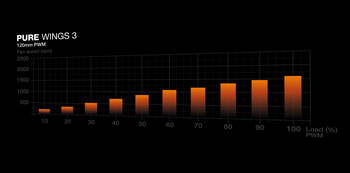

Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 148 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL110 |
| EAN code | 4260052190975 |
| Dimensions, package (L x W x H), (mm) | 127 x 27 x 122 |
| Gross weight, package (kg) | 0.18 |
| Pieces per packaging unit | 60 |
| Dimensions, shipping box (L x W x H), (mm) | 405 x 314 x 278 |
| Gross weight, shipping box (kg) | 11.71 |
| RRP (€) | 13.90 |
