Article number: BGW65
LIGHT BASE 600 DX
BlackExceptional from every angle
Be prepared for virtually any PC component available and make Light Base 600 DX Black your creative show case.
- Fully windowed front and side panel for a stunning panoramic view on all your PC components
- Impressive illumination from every angle with a massive ARGB LED strip
- Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
- Spacious design for up to two 360mm radiators at the same time and an ATX motherboard
- Support for motherboards with backside connector design
- 2 ARGB and fan hubs with 12 connectors in total
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
LOOK AT ME!
Panorama design for perfect visibilityYou deserve to show off what you got. Large window panels on the front and the side allow you to watch your PC components at work anytime. This makes Light Base 600 DX Black the perfect choice as your show case.
BRIGHT LIGHTS

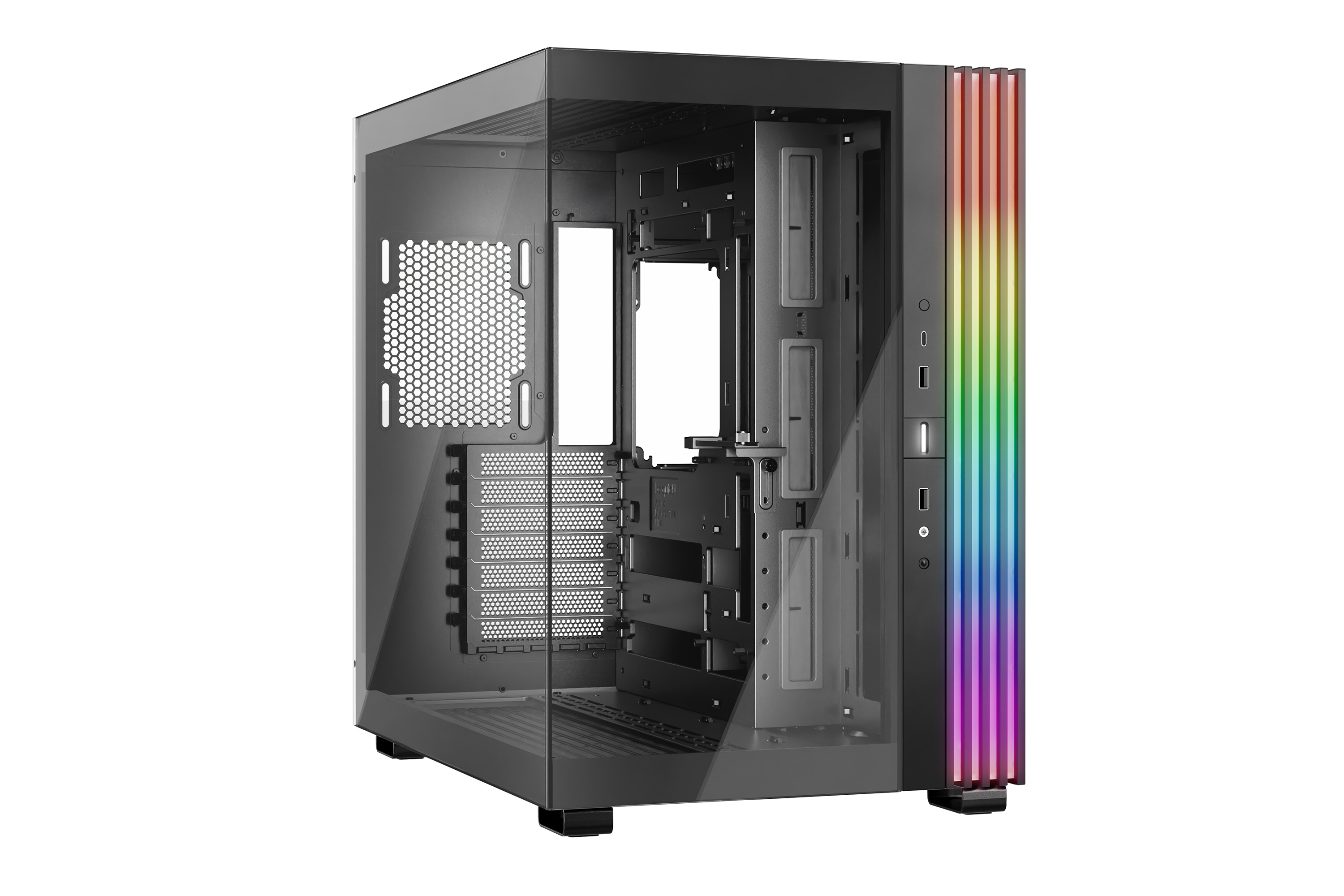

1.33 meters of LEDsLight Base 600 DX Black is predetermined for the big show. Nothing proves that more than the massive ARGB LED strip which is visible from all angles. The 1.33m long consists of 77 LEDs. With an included ARGB controller button and even more colors and modes with motherboard synchronization, you can make Light Base 600 DX Black truly your own. Express yourself!
UP, UP, DOWN, DOWN, LEFT, RIGHT, LEFT, RIGHT…

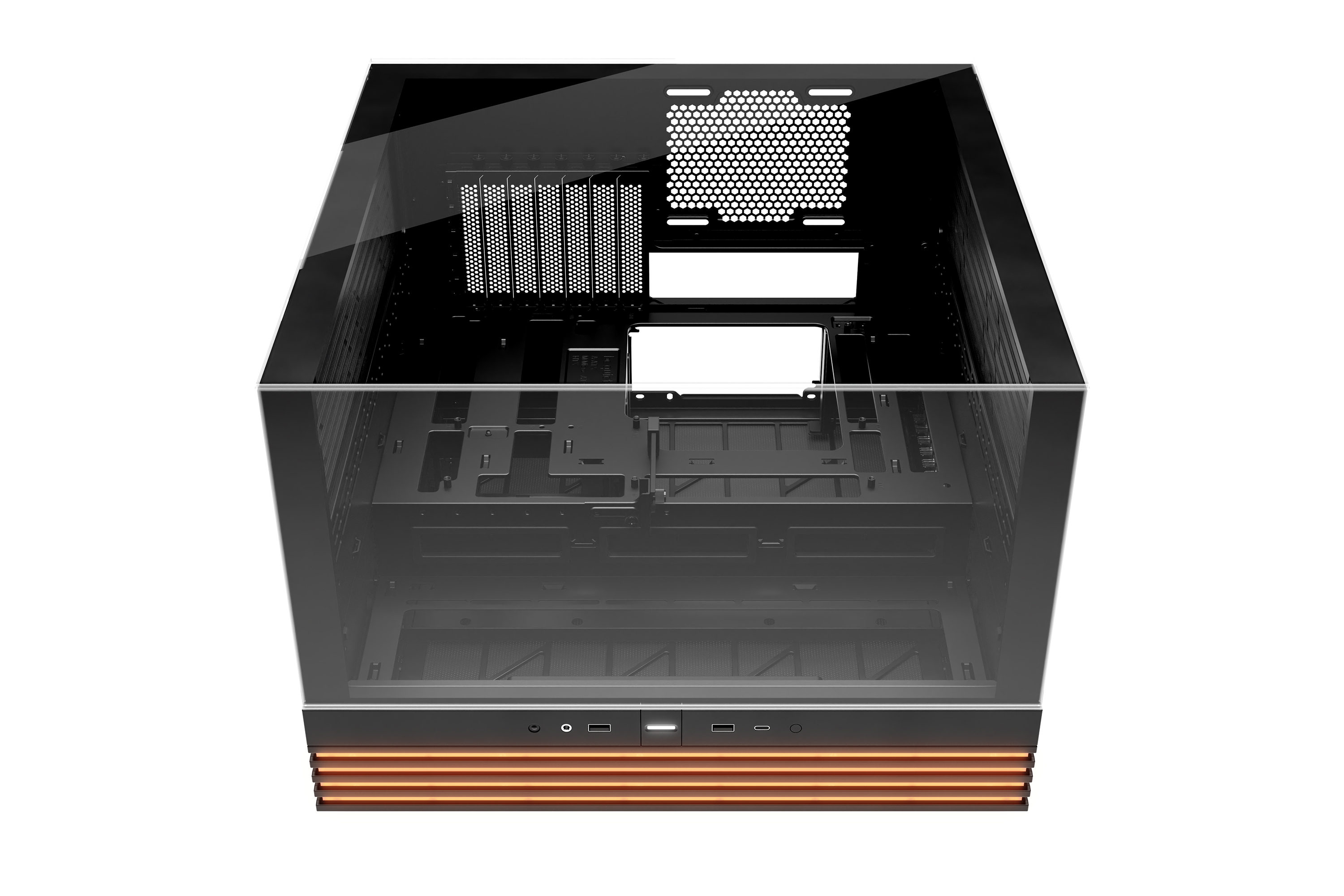

Change the layout in literal secondsIt takes longer to read this text than to invert Light Base 600 DX Black. With its relocatable feet, you can invert the PC case literally in seconds. You can also choose a horizontal layout, which is executed just as quick. No matter which layout your gaming room requires: Light Base 600 DX Black delivers.
MAKE IT YOUR CASE

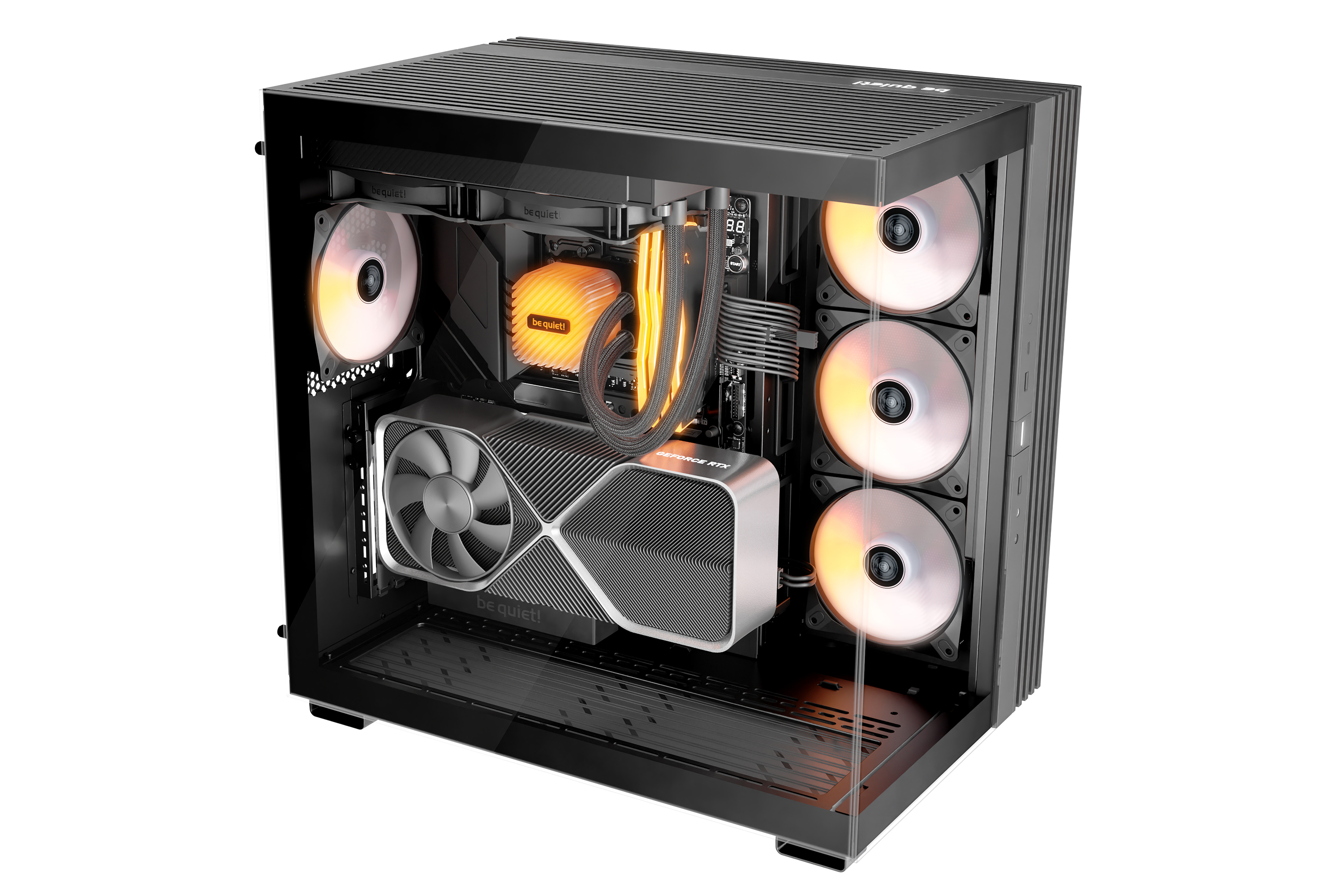

Large dimensions for endless creativityLight Base 600 DX Black features no preinstalled fans. However, up to 10 fans can be installed in total, making Light Base 600 DX Black extremely versatile. With its spacious design, it can hold up two 360mm radiators simultaneously, an ATX motherboard and even the most powerful graphics cards. Thanks to the dual chamber design, drives and cables are neatly tucked in the back and do not get in the way of airflow.
MAXIMUM USABILITY

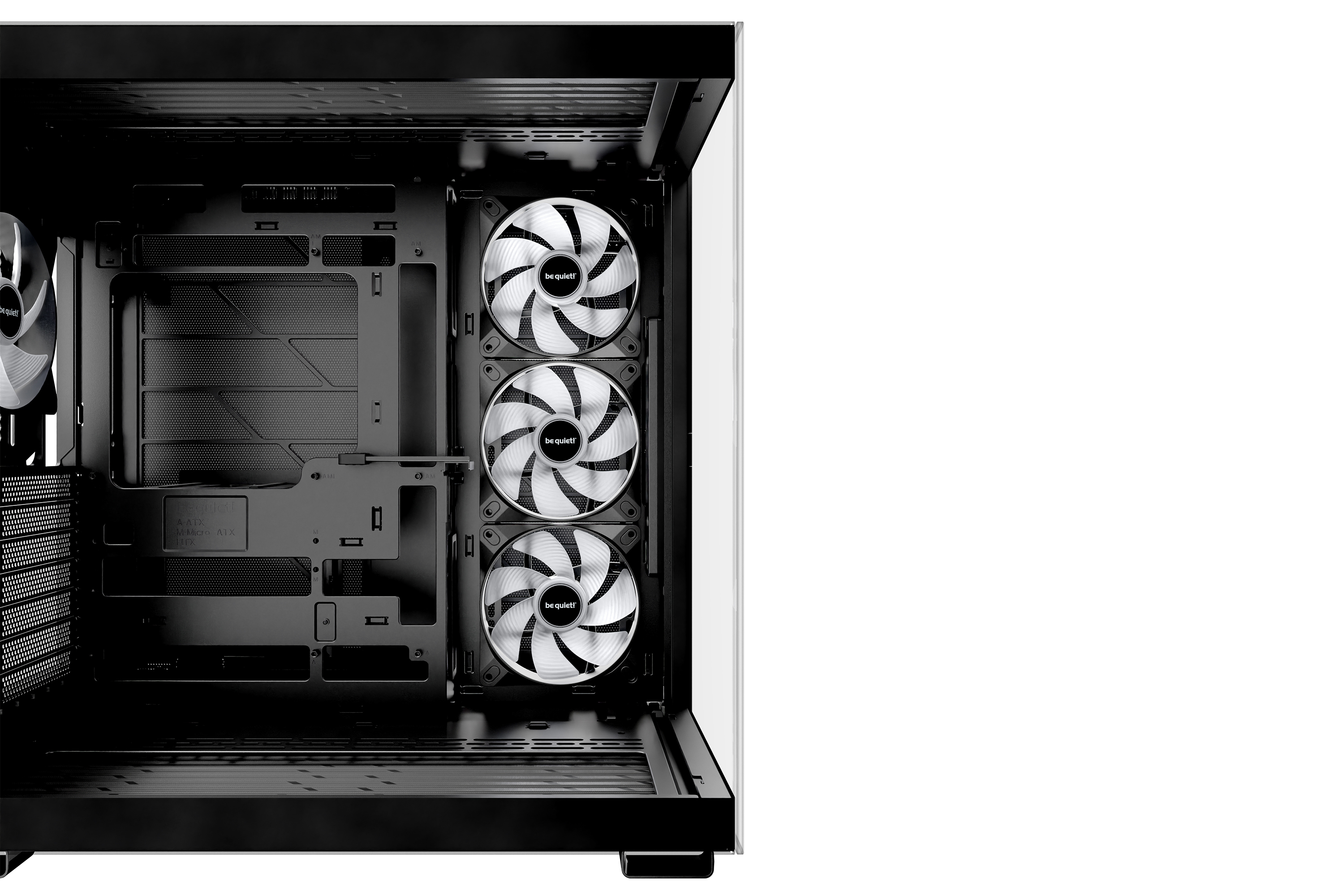

A new level of convenienceNext to the radiators you can install in the top and the bottom, you can install another radiator with up to 240mm length in the side, for a whopping 3 radiators. On top of that, Light Base 600 DX Black comes with 2 ARGB and PWM hubs that offer 12 connectors in total. Their positions at the top and bottom allow you to conveniently connect your hardware.
HOLD MY GPU
For a neat interiorLight Base 600 DX Black features a flexible VGA holder that subtly prevents your GPU from sagging. The best part: This holder works in any orientation and with a horizontally or vertically installed graphics card. The result is a clean look even if you use big and heavy graphics cards.
ON THE FLIPSIDE...
Support for motherboards with backside connector designThe motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view.
"What is a PC case other than a home for our components? Light Base is the fully glazed villa. And one with a marvelous architecture! Light Base is incredibly quick and easy to invert and can even be set horizontally for a retro feel."
Marco Marquardt, Product Developer BU PC Cases
All models at a glance:
General data
| Model | Light Base 600 DX Black |
| Color option | Black |
| Motherboard compatibility | ATX / M-ATX / Mini-ATX |

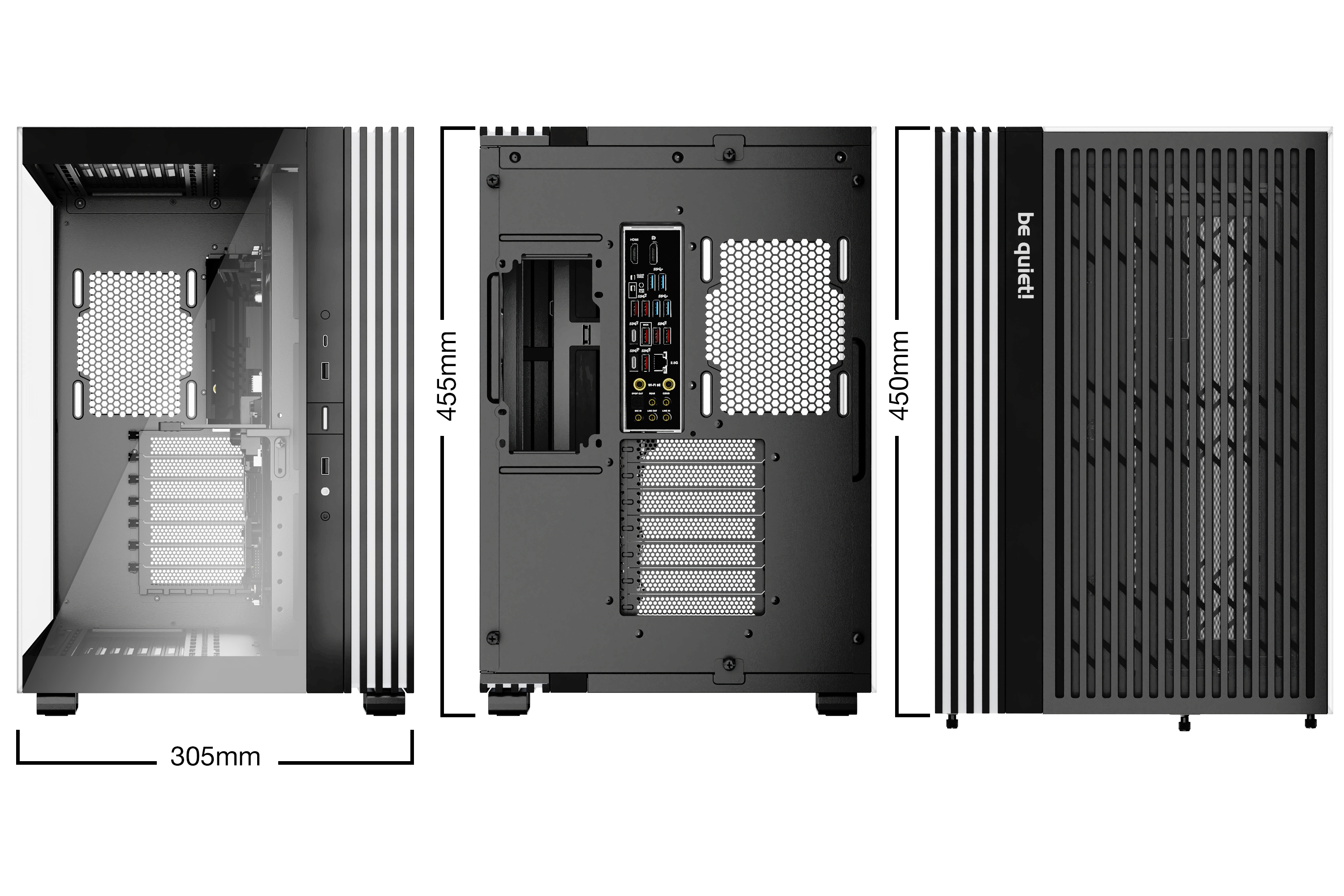

| Case size excl. stands (L x W x H), (mm) | 450 x 305 x 435 |
| Case size incl. stands (L x W x H), (mm) | 450 x 305 x 455 |
| Volume (l) | 59.7 |
| PSU form factor | ATX PS/2 |
| Net weight (kg) | 11.5 |
| Expansion slots | 7 |
Infographics
Pre-installed fans
| Fan at top | - |
| Fan at front | - |
| Fan at side | - |
| Fan at rear | - |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | - |
| Fan speed at 100% PWM / 12V (rpm) | - |
| Airflow at 100% PWM / 12V (CFM / m3/h) | - |
| Air Pressure at 100% PWM / 12V (mm H2O) | - |
| Noise level at 100% PWM / 12V (dB(A)) | - |
| Voltage range (V DC) | - |
| Input power (W) | - |
| Input current (A) | - |
| Connector | - |
| Lifespan (h / 25°C) | - |
| Fan controller | - |
Maximum fan installation
| Maximum fans | 8 |
| Top (mm) | 2x 140 / 3x 120 |
| Front (mm) | - |
| Side (mm) | 3x120 |
| Rear (mm) | 1x 120 |
| Bottom (mm) | 2x 140 / 3x 120 |
| PSU shroud | - |
Optional radiator installation
| Top (mm) | 120 / 240 / 360 |
| Front (mm) | - |
| Side (mm) | 120 / 240 |
| Rear (mm) | 120 |
| Bottom (mm) | 120 / 240 / 360 |
PSU compatibility
| Maximum dimensions excl. bottom fan (mm) | <200 |
| Maximum dimensions incl. bottom fan (mm) | <200 |
Graphics card
| HDD cage (in height of graphics card) installed (mm) | 400 |
| HDD cage (in height of graphics card) removed (mm) | 400 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 4 |
Drive bay capacity
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 1 |
| 3.5 slots (max.) | 2 |
| 2.5 slots (scope of delivery) | 2 |
| 2.5 slots (max.) | 4 |
Cooling
| Max.construction height of CPU cooler unit (mm) | 170 |
| Airflow channel | - |
Lighting
| LED illumination | ✓ |
| LEDs (pcs.) | 77 |
| LED type | ARGB - 5V |
| LEDs synchronizable with controller/motherboard | ✓ |

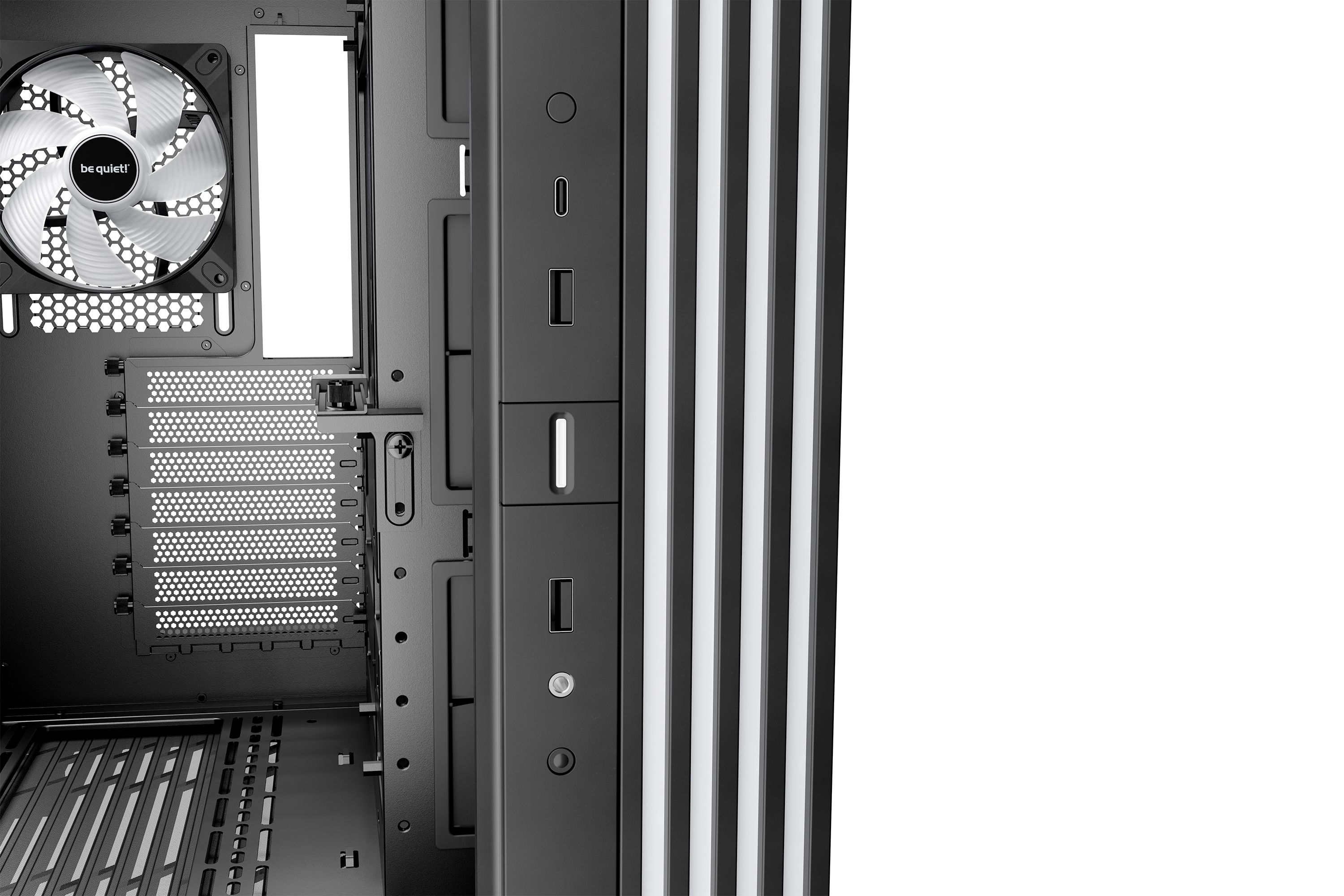

I/O Panel
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option (W) | - |
Insulation and damping
| Top panel insulation mats | ✓ |
| Front panel insulation mats | - |
| Side panel insulation mats | ✓ |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | ✓ |

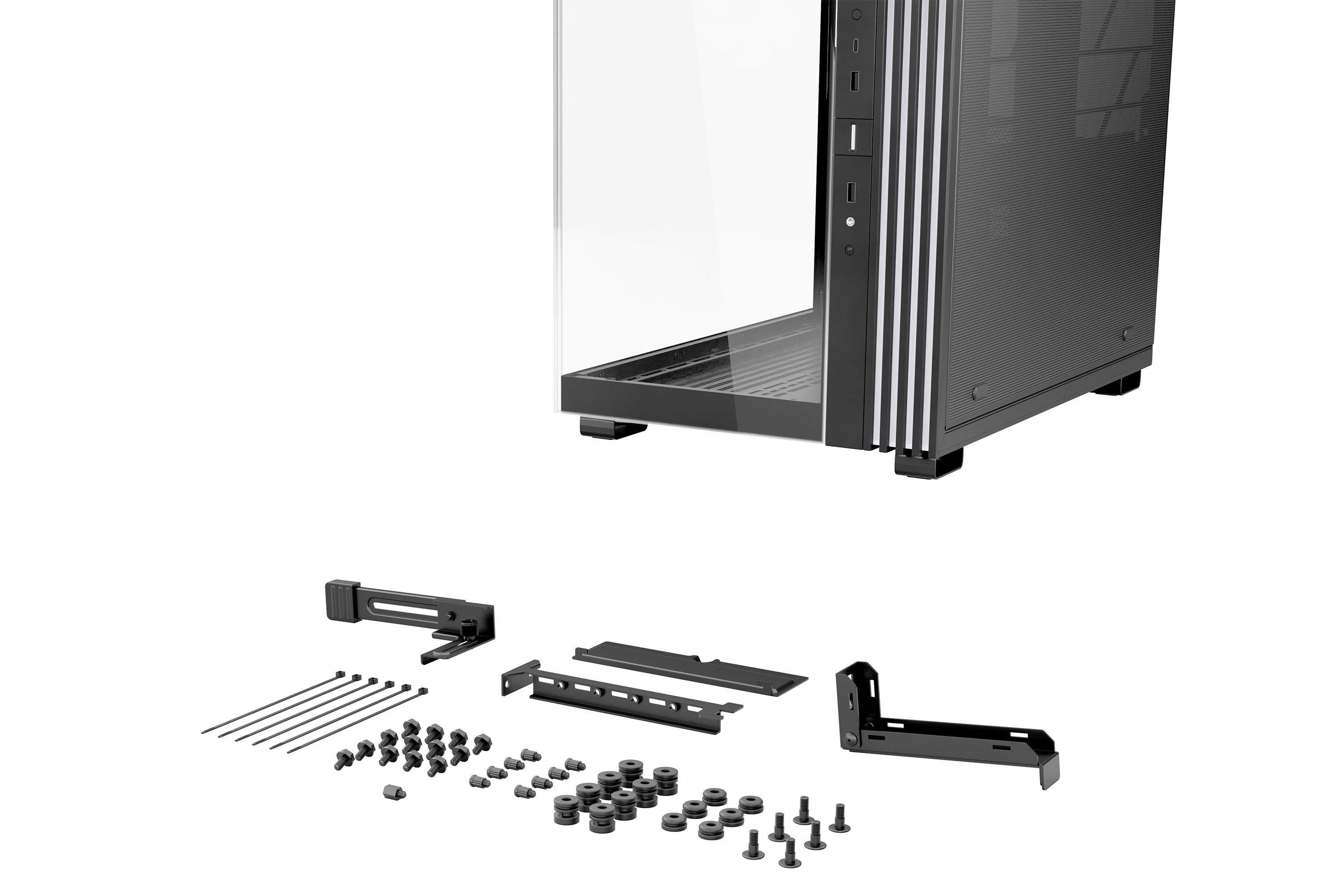

Scope of delivery
| Screw set (Drives/Motherboard) | ✓ |
| Additional standoffs (pcs.) | 1 |
| SSD bracket for PSU shroud | - |
| LED strips (pcs.) | 0 |
| Cable ties (pcs.) | 12 |
| Screw box | - |
| VGA holder | ✓ |
| VGA holder for inverted layout | ✓ |
| Mesh Front Panel | - |
| ODD Bracket | - |
| Fan / Radiator bracket for multi mounting panel | - |
Removeable dust filters
| Top | - |
| Front | - |
| Side | 1 |
| Bottom | - |
Material
| Top cover | Steel |
| Front panel | Glass |
| Side panel | Steel |
| Side panel window | Glass |
| Stands | ABS |
Safety certification
| Approvals | CE / RoHS |
Environmental directives
| RoHS | ✓ |
| Reach | - |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BGW65 |
| EAN code | 4260052191712 |
| Dimensions, package (L x W x H), (mm) | 523 x 390 x 554 |
| Gross weight, package (kg) | 14.0 |
| Pieces per packaging unit | 1 |
| RRP (€) | 139.90 |
