DARK BASE PRO 900

Orange

DARK BASE PRO 900

Orange

Outstanding flexibility and silence

be quiet! Dark Base Pro 900 Orange is the perfect case for all of those who expect the highest standards when it comes to modularity, compatibility and design.

MB-tray and HDD-tray with enhanced possibilities for individual requirements
Three virtually inaudible be quiet! SilentWings^®3 PWM fans
Full-circuit airflow system with noise-reducing vents
Water cooling ready for radiators up to 420mm
Fully windowed side panel from tempered glass
Eye-catching, freely positionable LED illumination
Wireless charger for Qi enabled devices (e.g. smart phones)
Three years manufacturer’s warranty
German product conception, design and quality control

Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. .

Characteristics

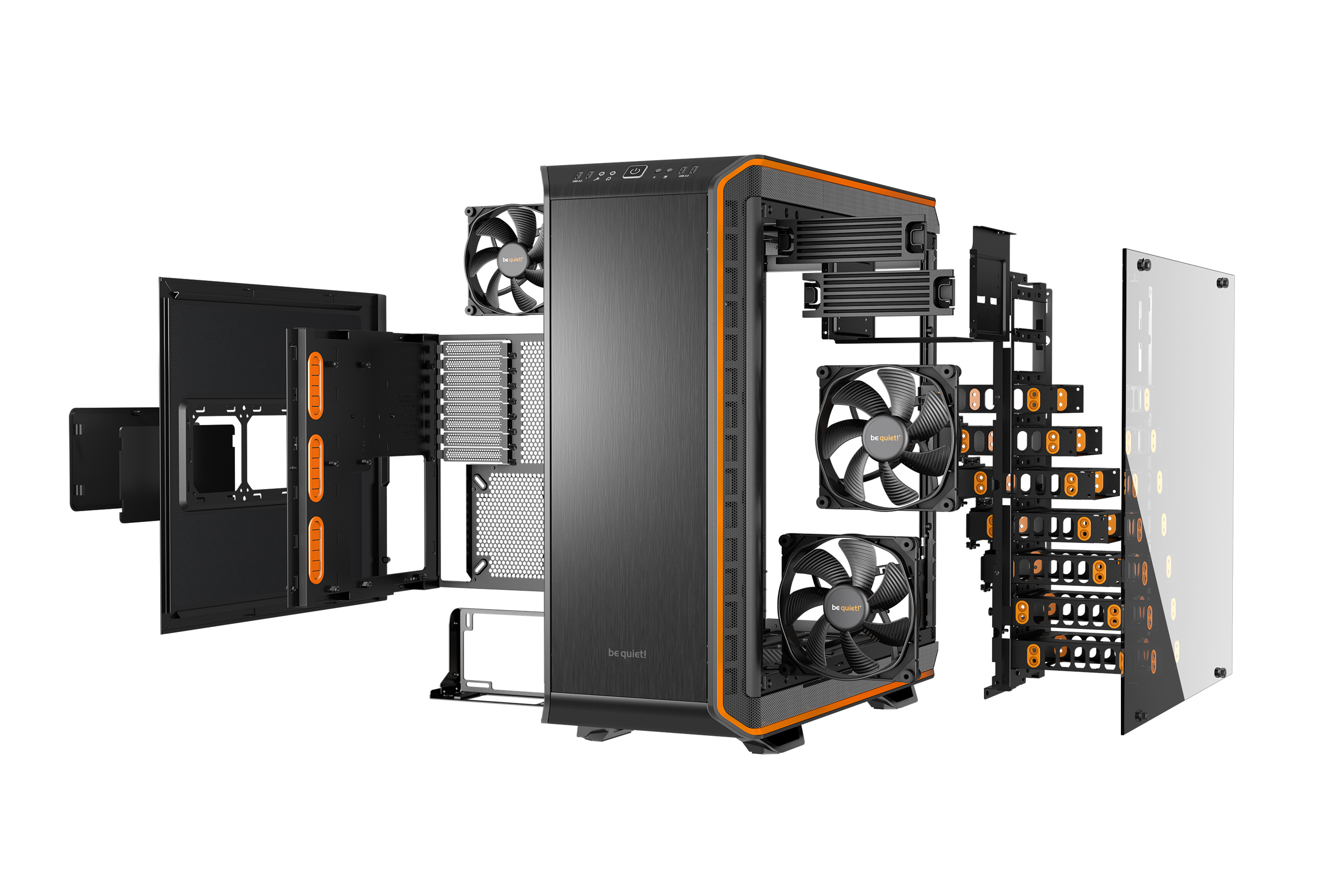

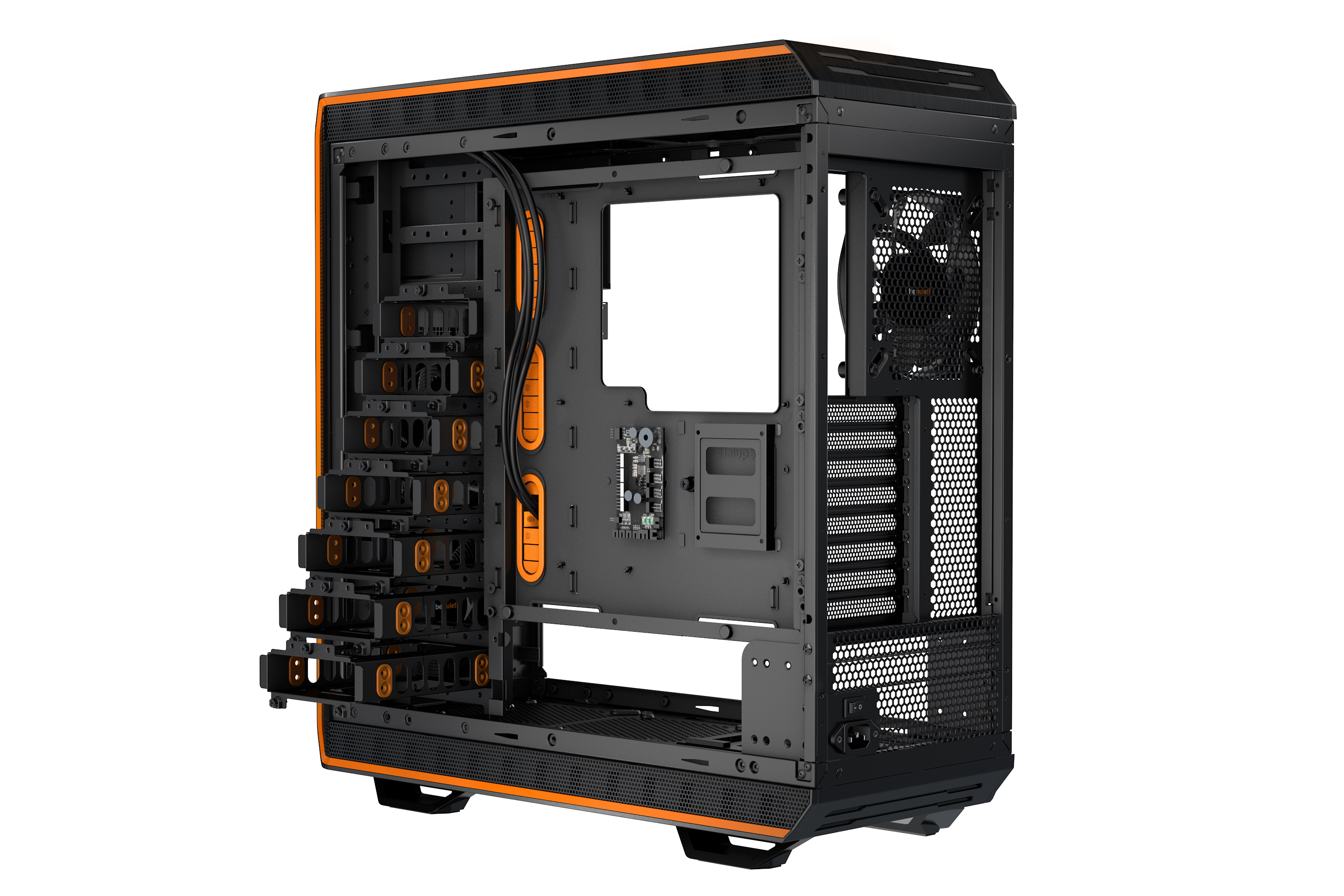

RELOCATABLE MOTHERBOARD TRAY

Flexibility for individual requirements

The decoupled motherboard tray adapts to suit individual requirements, being completely relocatable and usable as a test bench. You can adjust it to three different heights or install it alongside the left panel in an inverted layout with redefined airflow. It is fully compatible with E-ATX and XL-ATX motherboards.

SILENT WINGS 3

Impeccable cooling and silence

The three pre-installed SilentWings^® 3 140mm PWM fans offer virtually inaudible operation. They are equipped with a smooth-running 6-pole motor, durable fluid-dynamic bearing and airflow-optimized fan blade design. The frame has funnel-shaped air inlets that generate high air pressure.

MODULAR HDD SLOTS

Generous space for your setups

The installation options are flexible thanks to repositionable single HDD slots. Supports up to 7 HDDs, 15 SSDs and 2 optical drives. The assembly and handling concept gives you modularity choices, empowering you to create systems that meet the highest of standards.

FULL CIRCUIT AIRFLOW SYSTEM

A silence concept by the silence experts

With its smart silence concept, Dark Base Pro 900 Orange is the perfect case for the extreme requirements of overclocked systems and super silent water-cooled PCs. It can carry up to seven additional fans, up to four radiators and has noise-reducing vents all around the case that provide ultra-effective full circuit airflow.

TEMPERED GLASS AND LEDs

A perfect view inside your PC

The case is equipped with an elegant, fully windowed side panel that is made of tinted and tempered glass. The eye-catching internal LED illumination comes in five switchable colors. You can locate the LED strips freely inside the PC case.

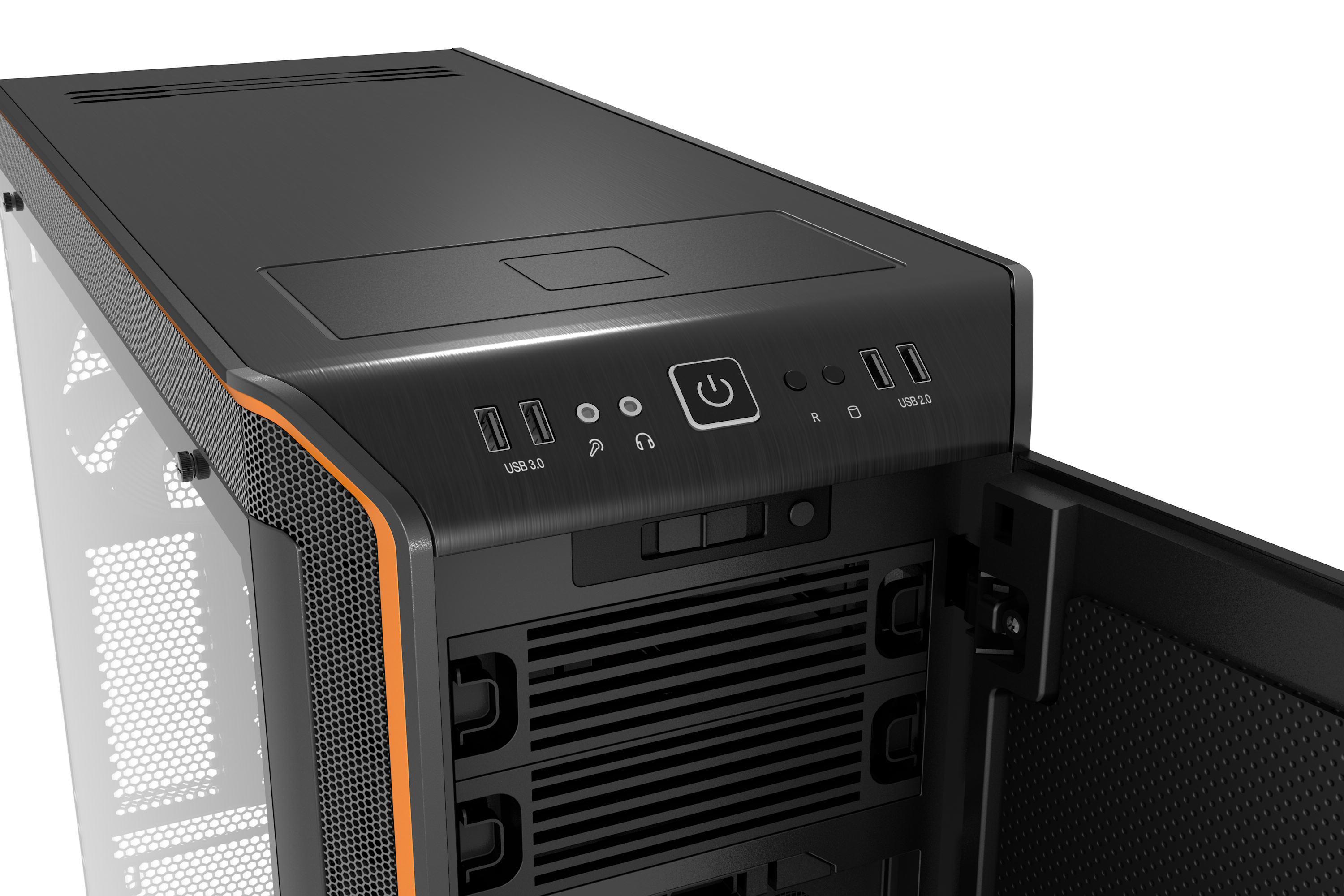

SMART I/O PORT AND CONVENIENT CHARGER

Fulfilling practically every desire

The front I/O port offers perfect compatibility for your high-end PC. Advanced PWM hub and manual fan controller supports up to four PWM and four 3-pin fans. 2x USB 3.2 Gen. 1, 2x USB 2.0, HD audio jacks. Integrated wireless charger for Qi enabled devices such as smart phones.

All models at a glance:

Product Series

General data

Model	Dark Base Pro 900 Orange
Color option	Orange
Motherboard compatibility	E-ATX / XL-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)	-

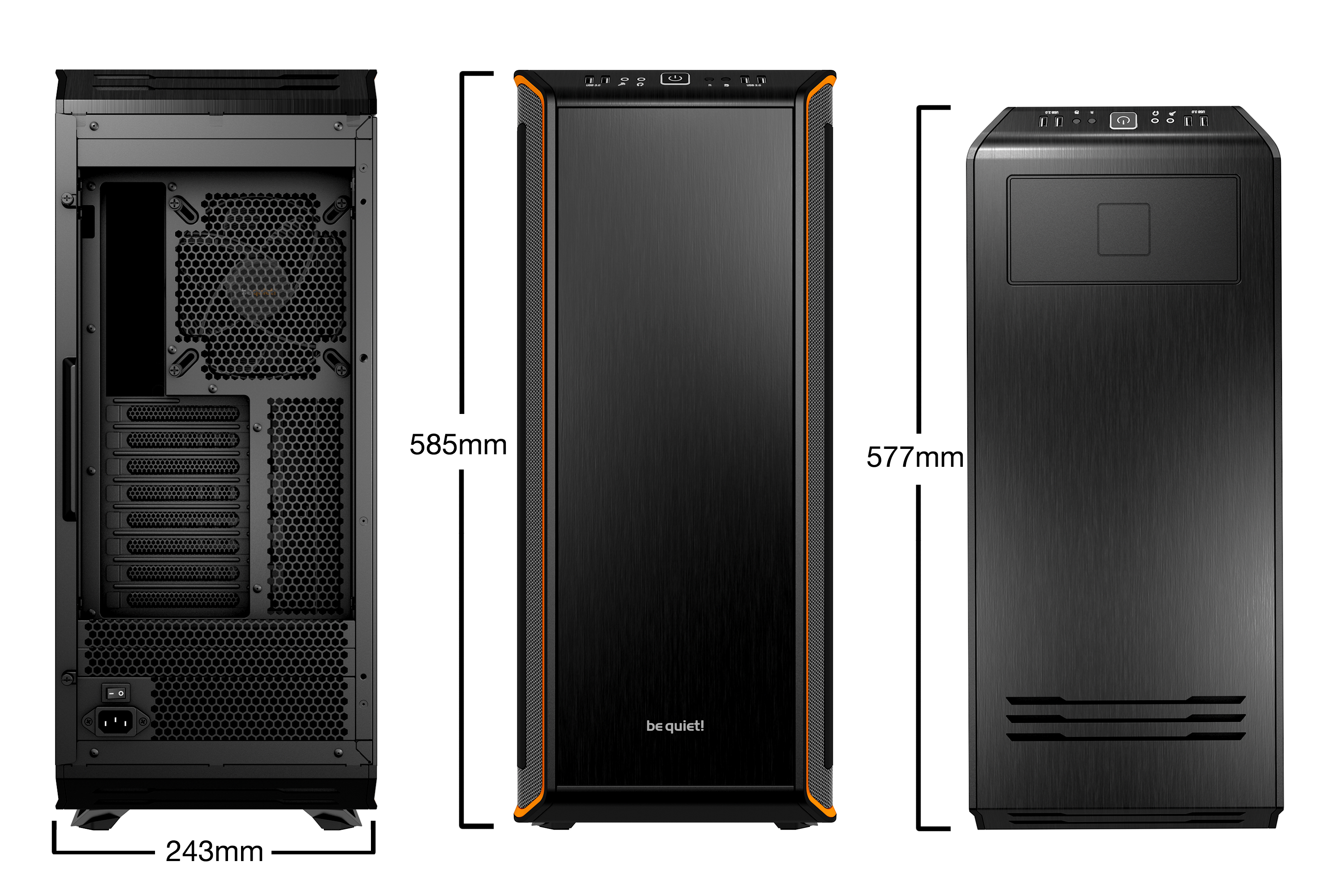

Case size incl. stands (L x W x H), (mm)	577 x 243 x 585
Volume (l)	-
PSU form factor	ATX PS/2
Net weight (kg)	14.39
Expansion slots	8

Infographics

open all / close all

						Pre-installed fans

									Fan at top-

									Fan at front2x Silent Wings 3 140mm PWM

									Fan at side-

									Fan at rear1x Silent Wings 3 140mm PWM

									Fan at bottom-

									Dimensions (L x W x H), (mm)Front: 140 x 25 x 140 / Rear: 140 x 25 x 140

									Fan speed at 100% PWM / 12V (rpm)1000

									Airflow at 100% PWM / 12V (CFM / m3/h)59.5 / 101.09

									Air Pressure at 100% PWM / 12V (mm H2O)1.08

									Noise level at 100% PWM / 12V (dB(A))15.5

									Voltage range (V DC)5 - 13.2

									Input power (W)3.6

									Input current (A)0.3

									Connector4-pin

									Lifespan (h / 25°C)300,000

									Fan controllerManual/PWM stepless fan controller (4x 4-pin / 4x 3-pin) / PWM hub

						Maximum fan installation

									Maximum fans-

									Top (mm)4x 120 / 3x 140

									Front (mm)1x 140 (w/o ODD cage)

									Side (mm)-

									Rear (mm)-

									Bottom (mm)2x 120 / 2x 140

									PSU shroud-

						Optional radiator installation

									Top (mm)120 / 140 / 180 / 240 / 280 / 360 / 420

									Front (mm)120 / 140 / 240 / 280 / 360 / 420

									Side (mm)-

									Rear (mm)120 / 140

									Bottom (mm)120 / 140 / 280

						PSU compatibility

									Maximum dimensions excl. bottom fan (mm)284

									Maximum dimensions incl. bottom fan (mm)150

						Graphics card

									HDD cage (in height of graphics card) installed (mm)323

									HDD cage (in height of graphics card) removed (mm)472

									Maximum PCIe slots with vertical graphics card (pcs.)-

						Drive bay capacity

									5.25 bays (pcs.)2

									3.5 slots (scope of delivery)7

									3.5 slots (max.)7

									2.5 slots (scope of delivery)15

									2.5 slots (max.)15

						Cooling

									Max.construction height of CPU cooler unit (mm)185

									Airflow channelFull circuit Airflow system

						Lighting

									LED illuminationinternal

									LEDs (pcs.)-

									LED type-

									LEDs synchronizable with controller/motherboard-

						I/O Panel

									USB 3.2 Gen. 2 Type C-

									USB 3.2 Type A2

									USB 2.02

									HD Audio I/O1

									Qi charger / Quick Charging Option (W)0

						Insulation and damping

									Top panel insulation mats-

									Front panel insulation mats✓

									Side panel insulation mats✓

									Anti-vibration decoupled HDD✓

									Anti-vibration decoupled fan✓

									Anti-vibration decoupled PSU✓

									Anti-vibration decoupled motherboard-tray✓

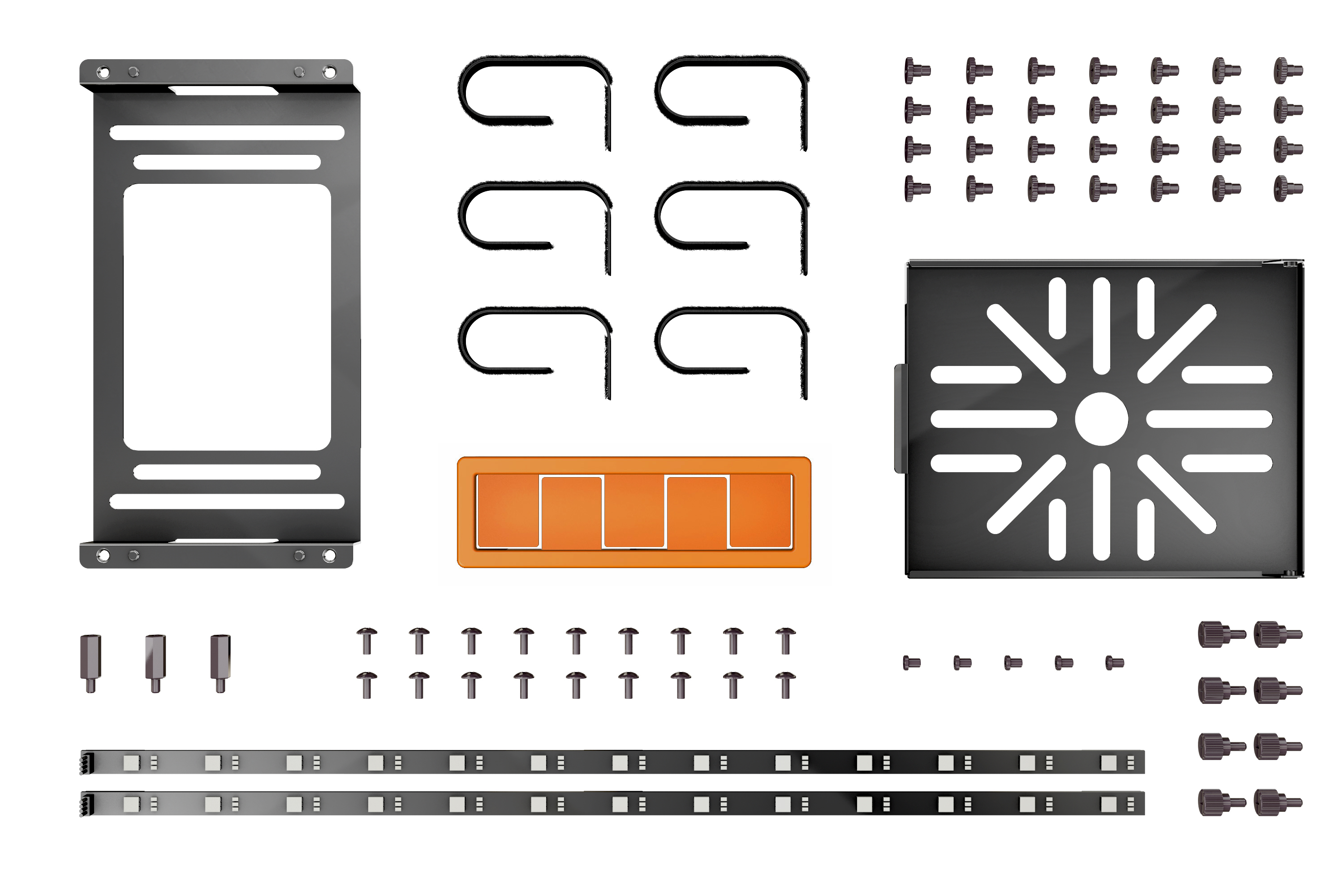

						Scope of delivery

									Screw set (Drives/Motherboard)✓

									Additional standoffs (pcs.)3 (for E-ATX)

									SSD bracket for PSU shroud-

									LED strips (pcs.)2

									Cable ties (pcs.)6 (Velcro)

									Screw box-

									VGA holder-

									VGA holder for inverted layout-

									Mesh Front Panel-

									ODD Bracket✓

									Fan / Radiator bracket for multi mounting panel-

						Removeable dust filters

									Top-

									Front1

									Side-

									Bottom1

						Material

									Top coverABS / Aluminum

									Front panelABS / Aluminum

									Side panelABS / Steel

									Side panel windowTempered glass

									StandsABS

						Safety certification

									Approvals-

						Environmental directives

									RoHS-

									Reach-

									WEEE-

									Triman-

						Service

									Warranty (Years)3

									International hotline / free of charge✓ / DE, FR

						Logistics data and RRP

									Article numberBGW10

									EAN code4260052184943

									Dimensions, package (L x W x H), (mm)655 x 325 x 680

									Gross weight, package (kg)16.52

									Pieces per packaging unit1

									RRP (€)259.00
