SILENT BASE 600

Window Orange

SILENT BASE 600

Window Orange

Unique Performance and Usability

be quiet! Silent Base 600 Window Orange offers the perfect symbiosis of noise prevention and cooling performance, good usability and extensive capacity for high-end hardware.

The innovative construction and pre-installed Pure Wings 2 fans assure excellent cooling performance and perfect air circulation. Numerous sound insulation features such as the double-glazed window contribute to well-known whisper-quiet operation. On account of tool-free mounting and generous space for hardware and cable management the case offers a comfortable, first-class usability.

Thanks to Silent Base 600’s “form follows function” principle, every detail has a purpose and function. It’s truly a superior case ideal for high-end gaming gear and quiet systems.


No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
  • Excellent cooling efficiency due to the innovative case design, perfect air-circulation and whisper-quiet operation
  • Great usability with easy mounting of drives, an intelligent and adaptable cable solution and air intake filters that are easily accessed for cleaning
  • Ample space and cutouts are provided for nearly every type of component and water cooling radiator
  • 2 pre-installed Pure Wings 2 fans that are decoupled from the case to circulate air with minimum vibration and the quietest possible operation

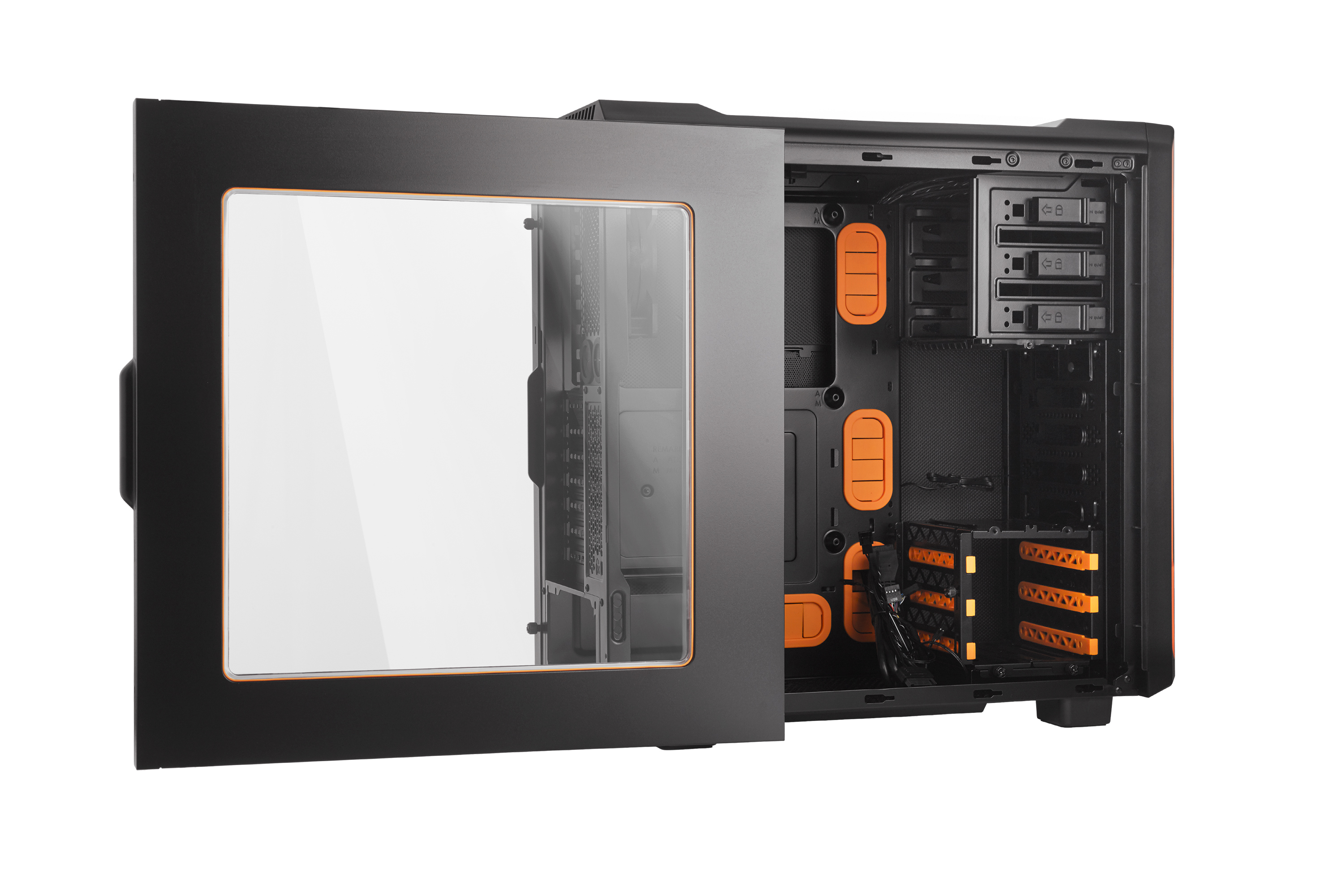

  • Side panel with double-glazed window provides a perfect view of the inside of the PC system
  • Professional cable management is supported with generous space for organizing cables, silicone rubber grommets, and carefully placed pass-throughs
  • The “form follows function” principle maximizes performance; the look of the case is based on its intended function and purpose

Very Silent Operation

  • The construction of the front, side and top covers optimize the case airflow, reducing turbulence and generating superior cooling at lower fan speeds for exceedingly quiet operation
  • Sound insulation material on the side panel and the front also reduces vibrations and provides even more stability
  • The double-glazed side panel with a cavity of 9mm between the two panes provides superb sound insulation
  • A decoupled Pure Wings 2 140mm at the front and another decoupled Pure Wings 2 120mm at the rear ensure perfect cooling airflow and whisper-quiet operation
  • The hard drive cage features silicone anti-vibration rails that fully decouple the drives



Perfect Cooling

  • The top cover air ducts are designed to channel the cooling airflow. With an opening to the rear it allows air to exit the chassis and this reduces any noise reaching the front
  • Additional fan mountings for up to four fans at the top, bottom and front
  • Convenient 3-step fan controller for up to three 3-pin fans
  • Water cooling ready for high-performance systems. Radiators can be installed at the top, in the HDD section and at the rear of the case
  • Organized cable routing assures efficient airflow, better cooling and therefore quieter operation



Engineering

  • The specially designed front panel allows air to enter the case while largely eliminating noise
  • The top cover allows hot air to exit the case and greatly reduces noise
  • The chassis provides ample internal space, allowing for the use of high-end hardware and large coolers such as the Dark Rock series
  • The U-shaped edges on the side panels reduce vibration and improve case stability
  • The side panel window is made from scratch and impact resistant material, which offers superb sound insulation due to the double-glazing of the window
  • The drive cage can be re-arranged to fit different hardware setups



Great Usability

  • Generous space and flexibility support a variety of high-end hardware
  • Innovative side panel design provides space for cable management behind the motherboard tray
  • Motherboard tray is provided with large, convenient cutouts for CPU cooler back plates
  • Three 5.25” drives can be installed and accessed easily
  • Up to three HDDs can be installed and secured with decoupling silicone rails
  • Motherboard tray holds up to 2 SSDs
  • Easy to remove dust filters are user-friendly and simple to clean



All models at a glance:

Product Series

General data

ModelSilent Base 600 Window Orange
Color optionOrange
Motherboard compatibilityATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)-

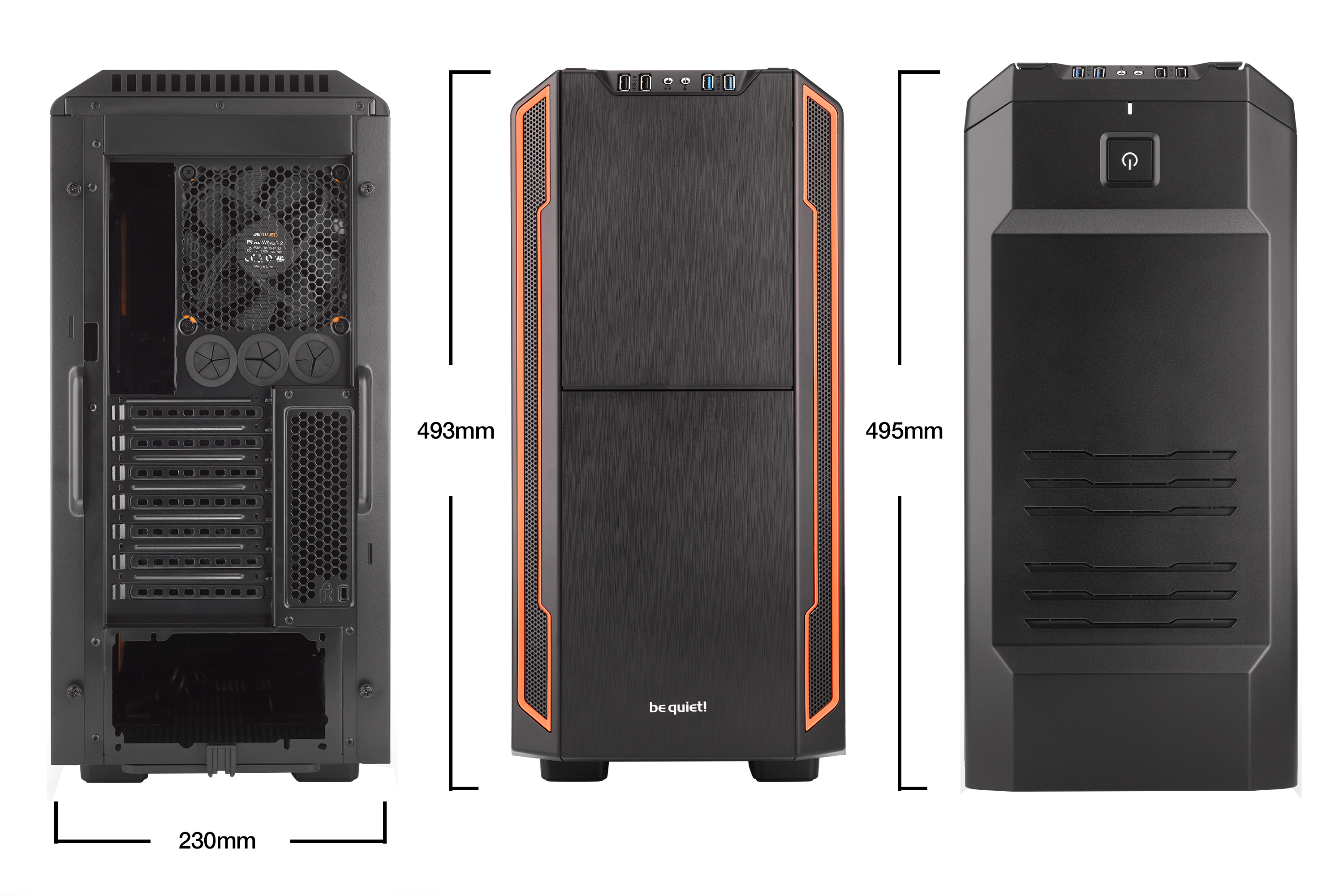

Case size incl. stands (L x W x H), (mm)495 x 230 x 493
Volume (l)-
PSU form factorATX PS/2
Net weight (kg)8.05
Expansion slots7

Infographics

open all / close all

Pre-installed fans

Fan at top-
Fan at front1x Pure Wings 2 140mm
Fan at side-
Fan at rear1x Pure Wings 2 120mm
Fan at bottom-
Dimensions (L x W x H), (mm)Front: 140 x 25 x 140 / Rear: 120 x 25 x 120
Fan speed at 100% PWM / 12V (rpm)Front: 900 / Rear: 1200
Airflow at 100% PWM / 12V (CFM / m3/h)Front: 55.8/94.8 / Rear: 41.7/70.84
Air Pressure at 100% PWM / 12V (mm H2O)Front: 0.6 / Rear: 0.9
Noise level at 100% PWM / 12V (dB(A))Front: 17.1 / Rear: 16.8
Voltage range (V DC)5 - 12
Input power (W)Front: 1.08 / Rear: 1.04
Input current (A)0.09
Connector3-pin
Lifespan (h / 25°C)80,000
Fan controllerManual 3-step fan controller (3x 3-pin)

Maximum fan installation

Maximum fans-
Top (mm)2x 120 / 2x 140
Front (mm)2x 140
Side (mm)-
Rear (mm)1x 120
Bottom (mm)1x 120 / 1x 140
PSU shroud-

Optional radiator installation

Top (mm)240
Front (mm)120 / 140
Side (mm)-
Rear (mm)120
Bottom (mm)-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)290
Maximum dimensions incl. bottom fan (mm)160

Graphics card

HDD cage (in height of graphics card) installed (mm)294
HDD cage (in height of graphics card) removed (mm)413
Maximum PCIe slots with vertical graphics card (pcs.)2

Drive bay capacity

5.25 bays (pcs.)3
3.5 slots (scope of delivery)3
3.5 slots (max.)3
2.5 slots (scope of delivery)3
2.5 slots (max.)4

Cooling

Max.construction height of CPU cooler unit (mm)170
Airflow channelFront / Top / Rear / Bottom

Lighting

LED illumination-
LEDs (pcs.)-
LED type-
LEDs synchronizable with controller/motherboard-

I/O Panel

USB 3.2 Gen. 2 Type C-
USB 3.2 Type A2
USB 2.02
HD Audio I/OMic + Audio
Qi charger / Quick Charging Option (W)-

Insulation and damping

Top panel insulation mats-
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray-

Scope of delivery

Screw set (Drives/Motherboard)
Additional standoffs (pcs.)2
SSD bracket for PSU shroud-
LED strips (pcs.)-
Cable ties (pcs.)4
Screw box-
VGA holder-
VGA holder for inverted layout-
Mesh Front Panel-
ODD Bracket-
Fan / Radiator bracket for multi mounting panel-

Removeable dust filters

Top-
Front1
Side-
Bottom1

Material

Top coverABS
Front panelABS
Side panelSteel
Side panel windowDouble-glazed window
StandsABS / Rubber

Safety certification

Approvals-

Environmental directives

RoHS-
Reach-
WEEE-
Triman-

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data and RRP

Article numberBGW05
EAN code4260052184455
Dimensions, package (L x W x H), (mm)550 x 305 x 572
Gross weight, package (kg)9.74
Pieces per packaging unit1
RRP (€)134.90

SILENT BASE 600 | Window Orange
Article number: BGW05
